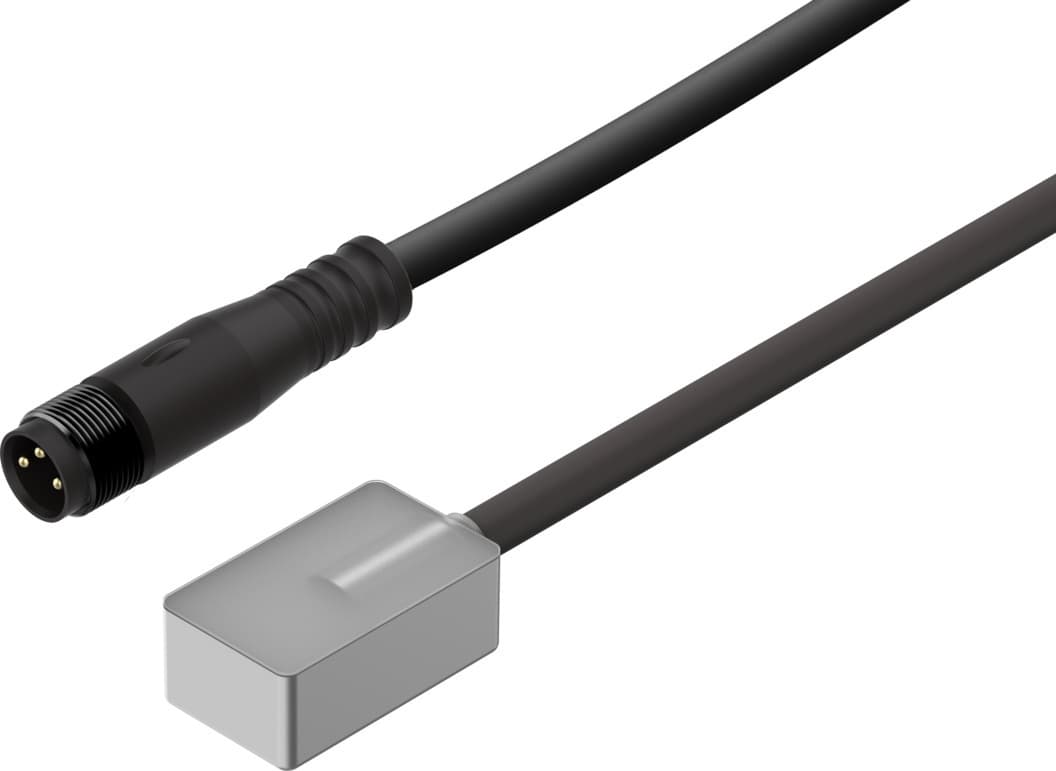

sdbf-fcs-1l-pu-k-n-m8
Product ID:16809
Updated: 2026/4/3
Key Features
- 1Achieve fast 4 µs switch-on time for rapid cycle applications. 2、Deliver up to 500 mA output current for direct load control. 3、Ensure durability with a robust block design and transparent PA housing. 4、Operate reliably from -4°F to 176°F in wide temperature ranges. 5、Protect against harsh conditions with IP67 rating and reverse polarity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Block design | Note on materials | RoHS-compliant |
| Measured variable | Position | Measuring principle | Magneto-resistive |
| Ambient temperature | -20°C 80°C | Switching output | PNP |
| Switching element function | N/O contact | On time | 0.004ms |
| Max. output current | 500mA | Max. switching capacity DC | 12W |
| Voltage drop | 1V | Short-circuit protection | yes |
| DC operating voltage range | 6V 24V | Reverse polarity protection | yes |
| Electrical connection 1, connection type | Cable with socket | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
| Color cable sheath | Gray | Material of cable sheath | PVC |
| Type of mounting | With mounting kit | Mounting position | Any |
| Housing colour | Transparent | Housing material | PA |
| Switching status indication | LED | Ambient temperature with flexible cable installation | -20°C 80°C |
| Degree of protection | IP67 NEMA 4 | LABS (PWIS) conformity | VDMA24364 zone III |
| Manufacturer ID | 8117065 |
Specifications may be subject to change without notice
