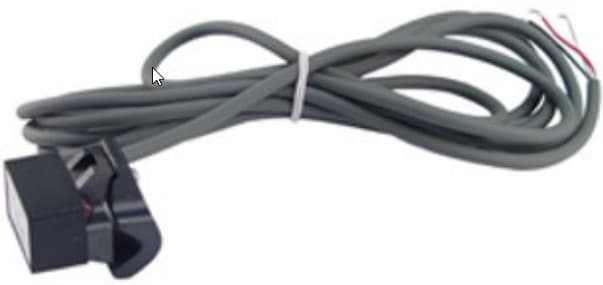

sdbf-fds-1l-nu-k-9-n-le
Product ID:397
Updated: 2026/7/4
Key Features
- 1Utilize magneto-resistive principle for precise position measurement.
- 2Operate effectively from -20°C to 80°C ambient temperature.
- 3Withstand harsh conditions with robust block design and IP67.
- 4Monitor switching status clearly via integrated LED indicator.
- 5Meet RoHS and VDMA24364 standards for compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Block design | Note on materials | RoHS-compliant |
| Measured variable | Position | Measuring principle | Magneto-resistive |
| Ambient temperature | -20°C 80°C | Ambient temperature Fahrenheit | -4°F 176°F |
| Switching output | NPN | Switching element function | N/O contact |
| On time | 0.0015ms | Switch-off time | 5.0E-4ms |
| Max. output current | 1000mA | Max. switching capacity DC | 24W |
| Voltage drop | 0.5V | Short-circuit protection | no |
| DC operating voltage range | 6V 24V | Reverse polarity protection | no |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Transverse |
| Color cable sheath | Gray | Material of cable sheath | PVC |
| Type of mounting | Clamped | Mounting position | Any |
| Housing colour | Black | Housing material | PA |
| Switching status indication | LED | Ambient temperature with flexible cable installation | -20°C 80°C |
| Degree of protection | IP67 NEMA 4 | LABS (PWIS) conformity | VDMA24364 zone III |
| Manufacturer ID | 8161168 |
Specifications may be subject to change without notice
