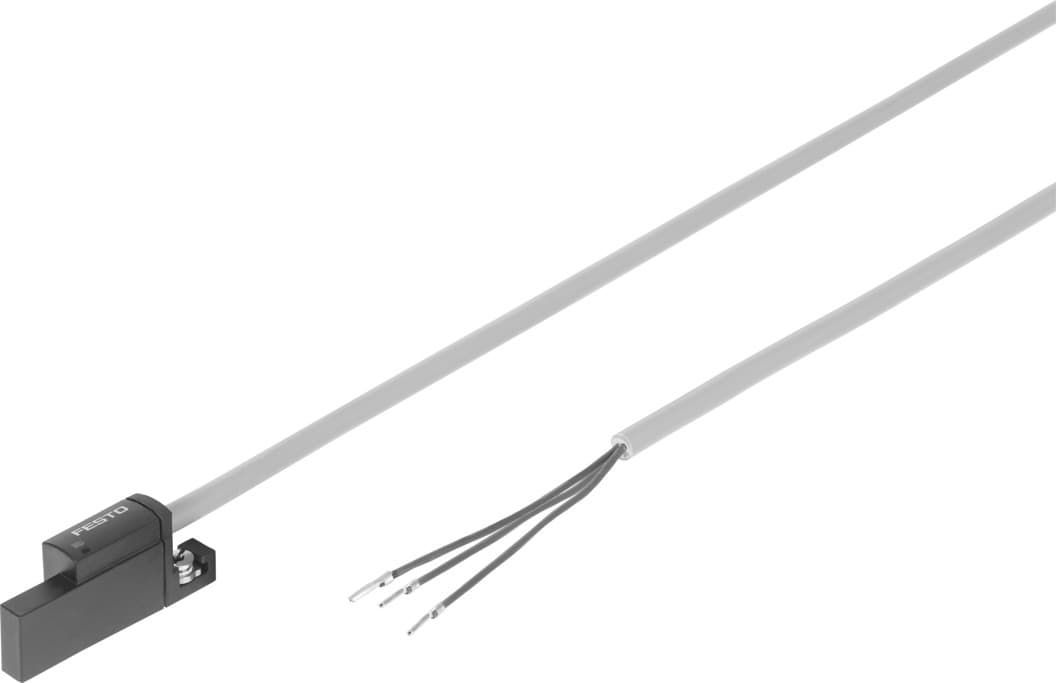

sdbt-bsw-1l-nu-w-5-n-le
Product ID:7994
Updated: 2026/4/3
Key Features
- 1Withstand harsh UV, oil, and welding field conditions for reliable operation. 2、Achieve precise 0.2 mm repeat accuracy and 1 m/s max travel speed. 3、Meet global standards with CE, UKCA, and cULus safety certifications. 4、Utilize robust epoxy resin and stainless steel housing for durability. 5、Reduce interference and ensure stable performance with magneto-resistive technology.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Based on norm | EN 60947-5-2 |
| Symbol | 00991149 | Certification | RCM compliance mark c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Special features | UV-resistant Oil-resistant Welding field resistant Resistant to welding spatter | Note on materials | RoHS-compliant |
| Application note | https://www.festo.com/Drive-Sensor-Overview | Measured variable | Position |
| Measuring principle | Magneto-resistive | Ambient temperature | -25°C 85°C |
| Max. travel speed | 1m/s | Repetition accuracy | 0.2mm |
| Switching output | NPN | Switching characteristics during the welding process | Output signal freezes |
| Switching element function | N/O contact | On time | 15ms |
| Switch-off time | 25ms | Max. switching frequency | 25Hz |
| Max. output current | 100mA | Max. output current in mounting kits | 100mA |
| Max. switching capacity DC | 2.8W | Max. switching capacity DC in mounting kits | 2.8W |
| Voltage drop | 1.5V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
| Minimum load current | 0mA | Residual current | 0.14mA |
| Short-circuit protection | yes | Overload protection | Available |
| Rated operating voltage DC | 24V | DC operating voltage range | 10V 30V |
| Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
| Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request | Cable length | 5m |
| Cable characteristic | Resistant to welding spatter | Color cable sheath | Gray |
| Material of cable sheath | PVC, cross-linked by irradiation | Insulating sheath material | PVC |
| Wire ends | Cable end sleeve | Type of mounting | Screwed tightly Can be inserted in slot from above |
| Max. tightening torque | 0.6Nm | Mounting position | Any |
| Product weight | 119.4g | Housing colour | Black |
| Housing material | Epoxy resin PA-reinforced High-alloy stainless steel | Switching status indication | LED yellow |
| Function reserve indication | LED orange | Ambient temperature with flexible cable installation | -5°C 80°C |
| Degree of protection | IP65 IP68 | Resistance to interference from magnetic fields | Insensitive to AC magnetic fields (50...60 Hz) < 200 mT Insensitive to MFDC magnetic fields (1000?Hz) < 200 mT Due to design, insensitive to permanent magnetic fields < Bon |
| LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 2427618 |
Specifications may be subject to change without notice
