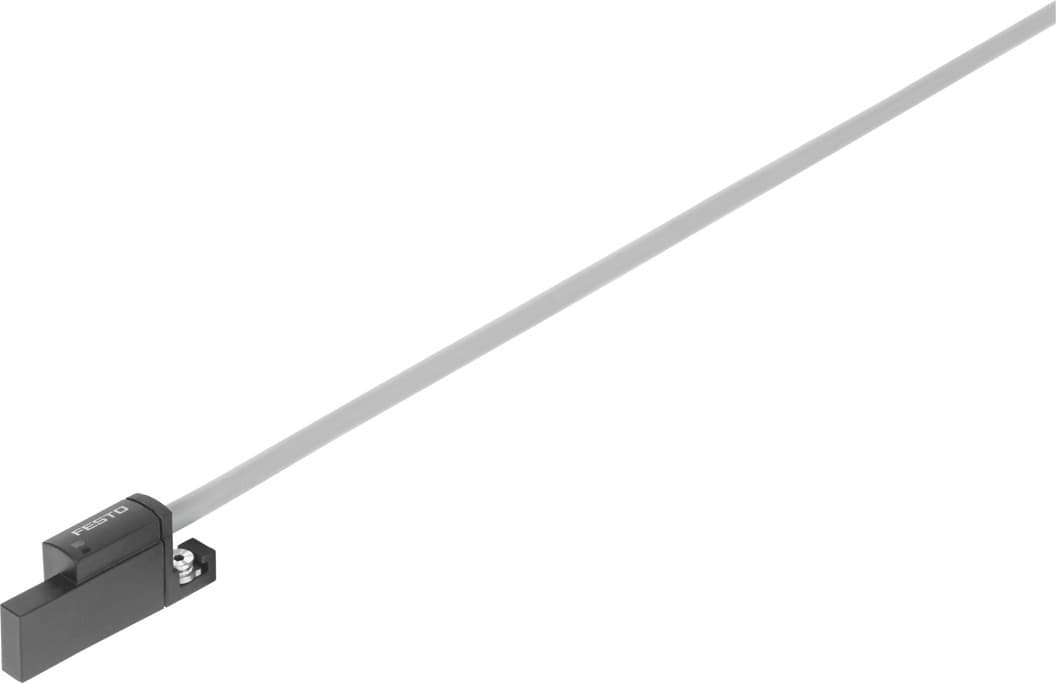

sdbt-bsw-1l-zu-w-5-n-le
Product ID:7993
Updated: 2026/4/3
Key Features
- 1Achieve high accuracy with 0.2 mm repeatability for reliable detection. 2、Integrate seamlessly into T-slot systems for enhanced efficiency. 3、Withstand harsh conditions using oil and UV resistant housing. 4、Operate reliably across a wide -25°C to 85°C temperature range. 5、Simplify wiring with a contactless 2-wire switching output.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Based on norm | EN 60947-5-2 |
| Symbol | 00991623 | Certification | RCM compliance mark c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Special features | UV-resistant Oil-resistant Welding field resistant Resistant to welding spatter | Note on materials | RoHS-compliant |
| Application note | https://www.festo.com/Drive-Sensor-Overview | Measured variable | Position |
| Measuring principle | Magneto-resistive | Ambient temperature | -25°C 85°C |
| Max. travel speed | 1m/s | Repetition accuracy | 0.2mm |
| Switching output | Non-contact, 2-wire | Switching characteristics during the welding process | Output signal freezes |
| Switching element function | N/O contact | On time | 15ms |
| Switch-off time | 25ms | Max. switching frequency | 25Hz |
| Max. output current | 80mA | Max. output current in mounting kits | 80mA |
| Max. switching capacity DC | 1.9W | Max. switching capacity DC in mounting kits | 1.9W |
| Voltage drop | 6V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
| Minimum load current | 2.4mA | Residual current | 0.7mA |
| Short-circuit protection | yes | Overload protection | Available |
| Rated operating voltage DC | 24V | DC operating voltage range | 10V 30V |
| Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 2 | Connection outlet orientation | Longitudinal |
| Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request | Cable length | 5m |
| Cable characteristic | Resistant to welding spatter | Color cable sheath | Gray |
| Material of cable sheath | PVC, cross-linked by irradiation | Insulating sheath material | PVC |
| Wire ends | Cable end sleeve | Type of mounting | Screwed tightly Can be inserted in slot from above |
| Max. tightening torque | 0.6Nm | Mounting position | Any |
| Product weight | 116.9g | Housing colour | Black |
| Housing material | Epoxy resin PA-reinforced High-alloy stainless steel | Switching status indication | LED yellow |
| Function reserve indication | LED orange | Ambient temperature with flexible cable installation | -5°C 80°C |
| Degree of protection | IP65 IP68 | Resistance to interference from magnetic fields | Insensitive to AC magnetic fields (50...60 Hz) < 160 mT Due to design, insensitive to permanent magnetic fields < Bon |
| LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 2427617 |
Specifications may be subject to change without notice
