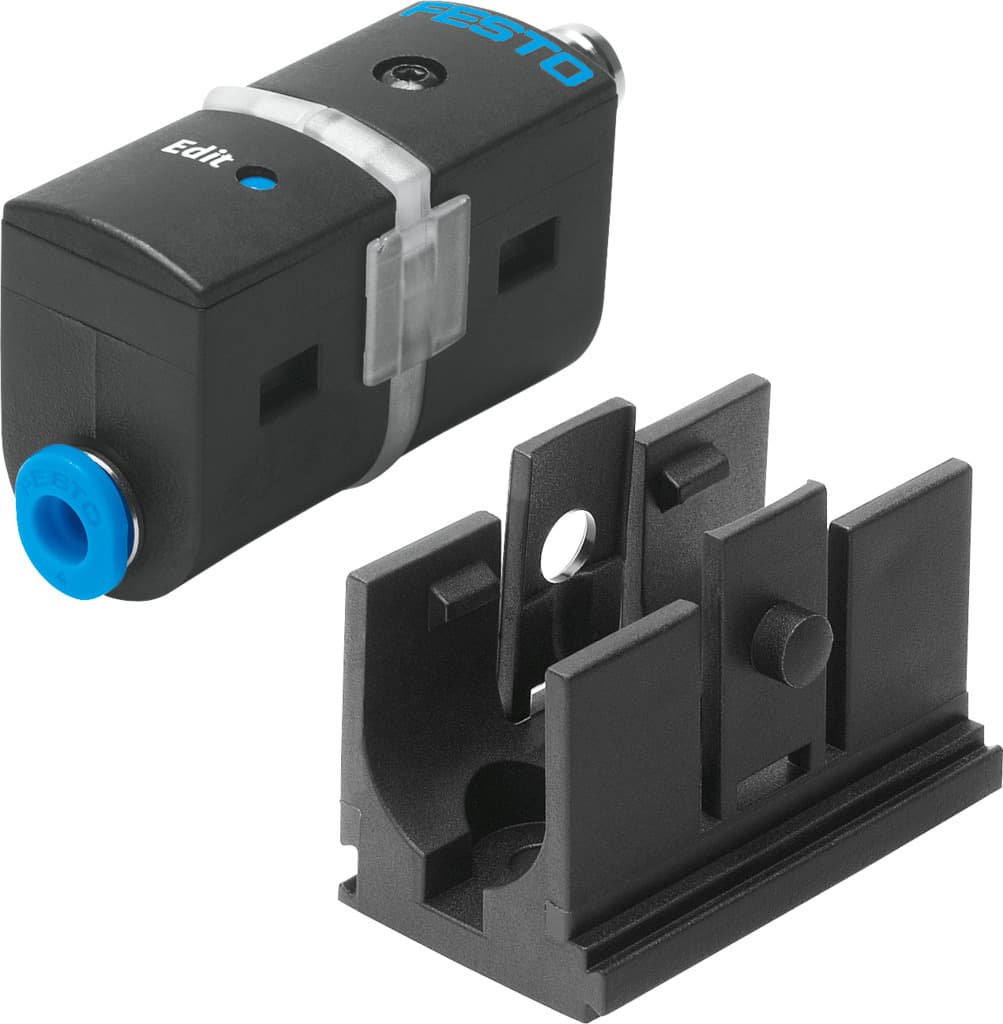

sde5-
Product ID:9100
Updated: 2026/4/3
Key Features
- 1Program and configure the switch for simple pressure sensing tasks. 2、Measure pressures from -1 to 10 bar for versatile applications. 3、Ensure reliable readings with 0.3% FS repetition accuracy. 4、Integrate easily using NPN, PNP, or 0-10V output options. 5、Mount quickly with QS connections and linkable brackets.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Certification | RCM compliance mark c UL us - Recognized (OL) | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
| Measured variable | Differential pressure Relative pressure | Method of measurement | Piezoresistive pressure sensor |
| Pressure measuring range initial value | -1bar | Pressure measuring range end value | 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
| Repetition accuracy in ± %FS | 0.3%FS | Temperature co-efficient in ± %FS/K | 0.05%FS/K |
| Switching output | NPN PNP | Switching function | Window comparator Freely programmable Threshold value with fixed hysteresis Threshold value with variable hysteresis |
| Switching element function | N/C contact N/O contact Switchable | Max. output current | 100mA |
| Analog output | 0 - 10 V | Output characteristic curve initial value | 0V |
| End value output characteristic curve | 10V | Precision analog output in ± %FS | 3%FS |
| Linearity error in ± % FS | 0.3%FS | Short-circuit protection | yes |
| DC operating voltage range | 15V 30V | Reverse polarity protection | for all electrical connections |
| Electrical connection | Cable Plug | Cable length | 2.5m |
| Type of mounting | With accessories | Mounting position | Any |
| Pneumatic connection | QS-4 QS-6 QS-5/32 QS-1/4 | Product weight | 19g 47g |
| Housing material | PA POM | Ready status indication | LED |
| Degree of protection | IP40 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Manufacturer ID | 529027 |
Specifications may be subject to change without notice
