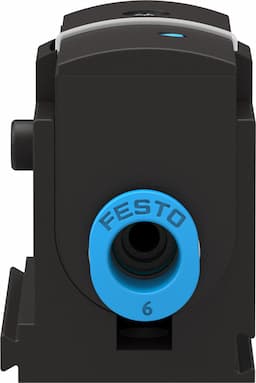

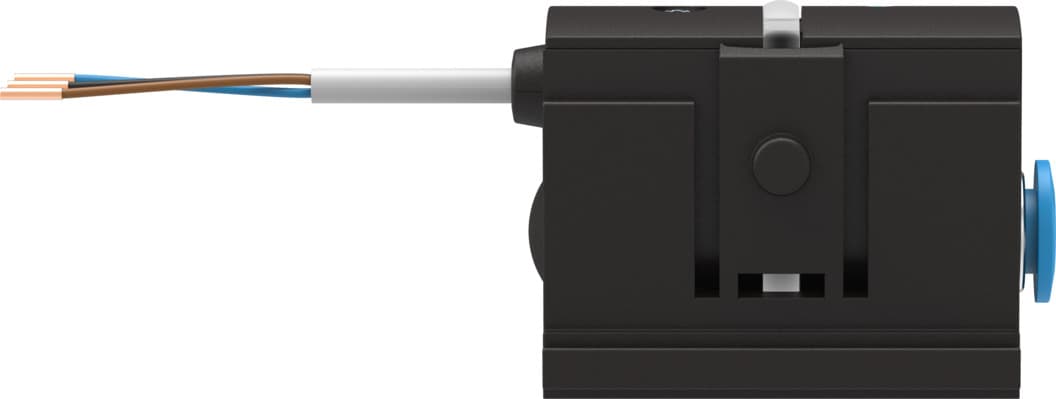

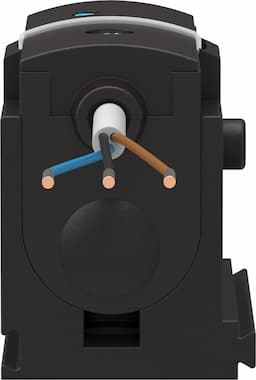

sde5-d10-c-q6e-p-k
Product ID:10865
Updated: 2026/4/3
Key Features
- 1Deliver ±0.3% FS repetition accuracy for precise compressed air system control. 2、Measure relative pressure across a wide 0 to 10 bar operational range. 3、Ensure durability with a robust PA POM housing rated IP40 and CRC 2. 4、Simplify installation using a standard 3-wire cable per EN 60947-5-2. 5、Configure flexible PNP switching with 0-100% threshold setting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Certification | RCM compliance mark c UL us - Recognized (OL) | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
| Measured variable | Relative pressure | Method of measurement | Piezoresistive pressure sensor |
| Pressure measuring range initial value | 0bar | Pressure measuring range end value | 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
| Repetition accuracy in ± %FS | 0.3%FS | Temperature co-efficient in ± %FS/K | 0.05%FS/K |
| Switching output | PNP | Switching function | Threshold value with fixed hysteresis |
| Switching element function | N/C contact | Max. output current | 100mA |
| Short-circuit protection | yes | DC operating voltage range | 15V 30V |
| Reverse polarity protection | for all electrical connections | Electrical connection | 3-wire Cable as per EN 60947-5-2 |
| Cable length | 2.5m | Type of mounting | With accessories |
| Mounting position | Any | Pneumatic connection | QS-6 |
| Product weight | 47g | Housing material | PA POM |
| Switching status indication | LED yellow | Setting range threshold value | 0% 100% |
| Degree of protection | IP40 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Manufacturer ID | 542895 |
Specifications may be subject to change without notice
