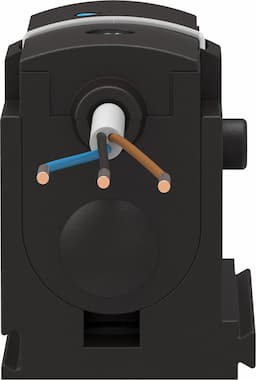

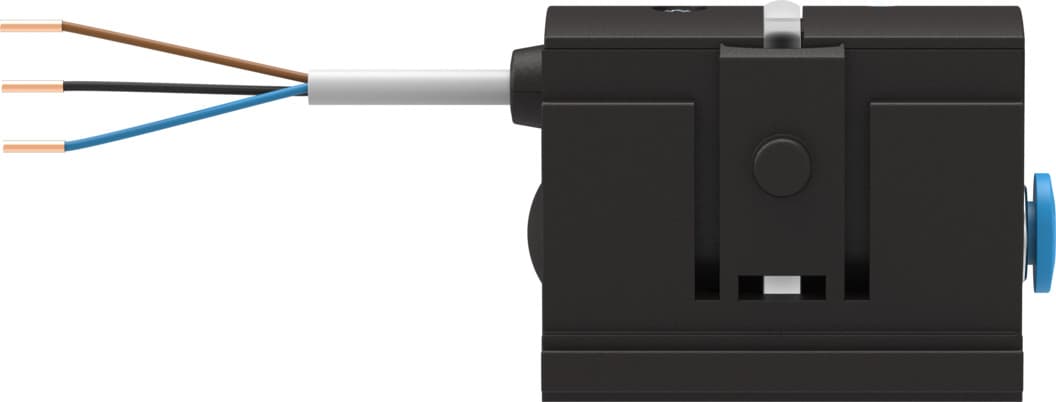

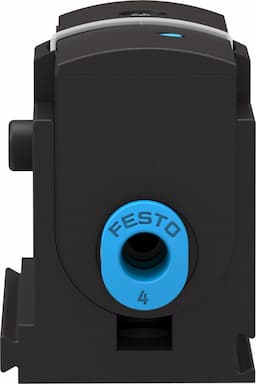

sde5-d10-fp-q4e-p-k
Product ID:10871
Updated: 2026/4/3
Key Features
- 1Achieve ±0.3% FS high repetition accuracy. 2、Monitor pressure from 0 to 10 bar range. 3、Program the switching output freely. 4、Operate reliably with IP40 and short-circuit protection. 5、Meet standards with RCM, c UL us, and CE certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00991887 | Certification | RCM compliance mark c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Measured variable | Relative pressure |
| Method of measurement | Piezoresistive pressure sensor | Pressure measuring range initial value | 0bar |
| Pressure measuring range end value | 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
| Ambient temperature | 0°C 50°C | Repetition accuracy in ± %FS | 0.3%FS |
| Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | PNP |
| Switching function | Freely programmable | Switching element function | Switchable |
| Max. output current | 100mA | Short-circuit protection | yes |
| DC operating voltage range | 15V 30V | Reverse polarity protection | for all electrical connections |
| Electrical connection | 3-wire Cable as per EN 60947-5-2 | Cable length | 2.5m |
| Type of mounting | With accessories | Mounting position | Any |
| Pneumatic connection | QS-4 | Product weight | 47g |
| Housing material | PA POM | Switching status indication | LED yellow |
| Setting range threshold value | 0% 100% | Degree of protection | IP40 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 542901 |
Specifications may be subject to change without notice
