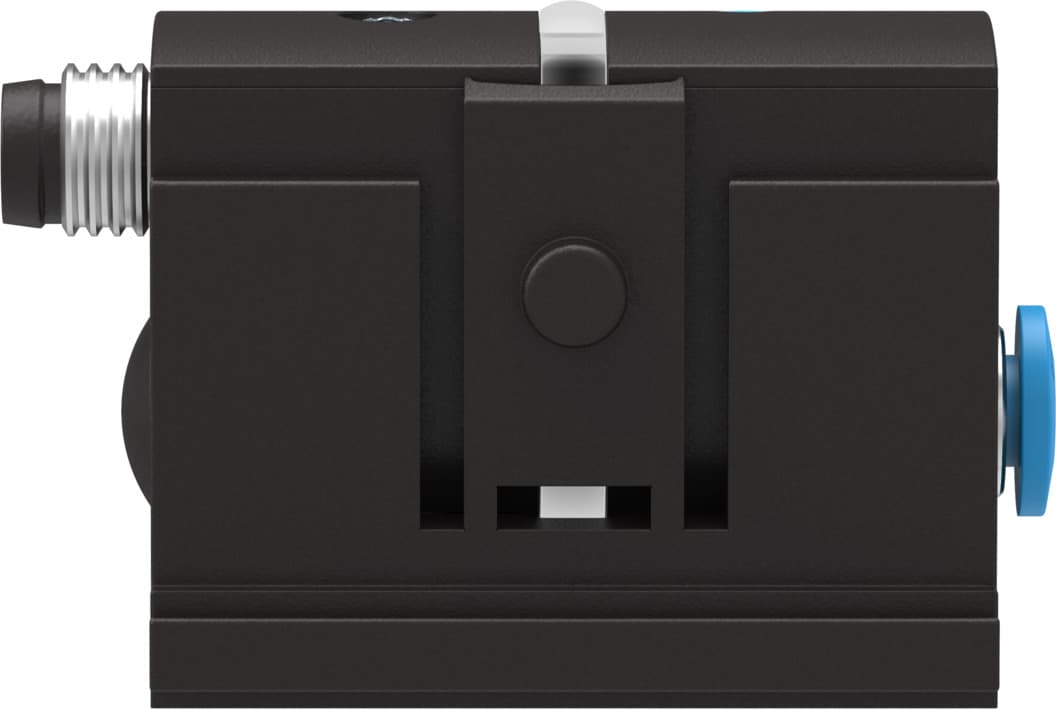

sde5-v1-o-q4e-p-m8
Product ID:9052
Updated: 2026/4/3
Key Features
- 1Monitor compressed air pressure precisely with adjustable thresholds. 2、Rely on robust PA POM housing for durability in harsh environments. 3、Simplify integration with standardized electrical connections. 4、Reduce maintenance costs through reliable long-term operation. 5、Ensure system safety and prevent costly downtime.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00991164 | Certification | RCM compliance mark c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Measured variable | Relative pressure |
| Method of measurement | Piezoresistive pressure sensor | Pressure measuring range initial value | 0bar |
| Pressure measuring range end value | -1bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
| Ambient temperature | 0°C 50°C | Repetition accuracy in ± %FS | 0.3%FS |
| Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | PNP |
| Switching function | Threshold value with fixed hysteresis | Switching element function | N/O contact |
| Max. output current | 100mA | Short-circuit protection | yes |
| DC operating voltage range | 15V 30V | Reverse polarity protection | for all electrical connections |

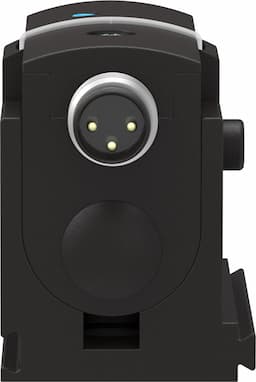

| Electrical connection | 3-pin M8x1 Plug as per EN 60947-5-2 Round design | Type of mounting | With accessories |

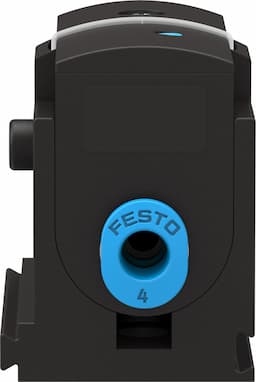

| Mounting position | Any | Pneumatic connection | QS-4 |
| Product weight | 19g | Housing material | PA POM |
| Switching status indication | LED yellow | Setting range threshold value | 0% 100% |
| Degree of protection | IP40 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Manufacturer ID | 527460 |
Specifications may be subject to change without notice
