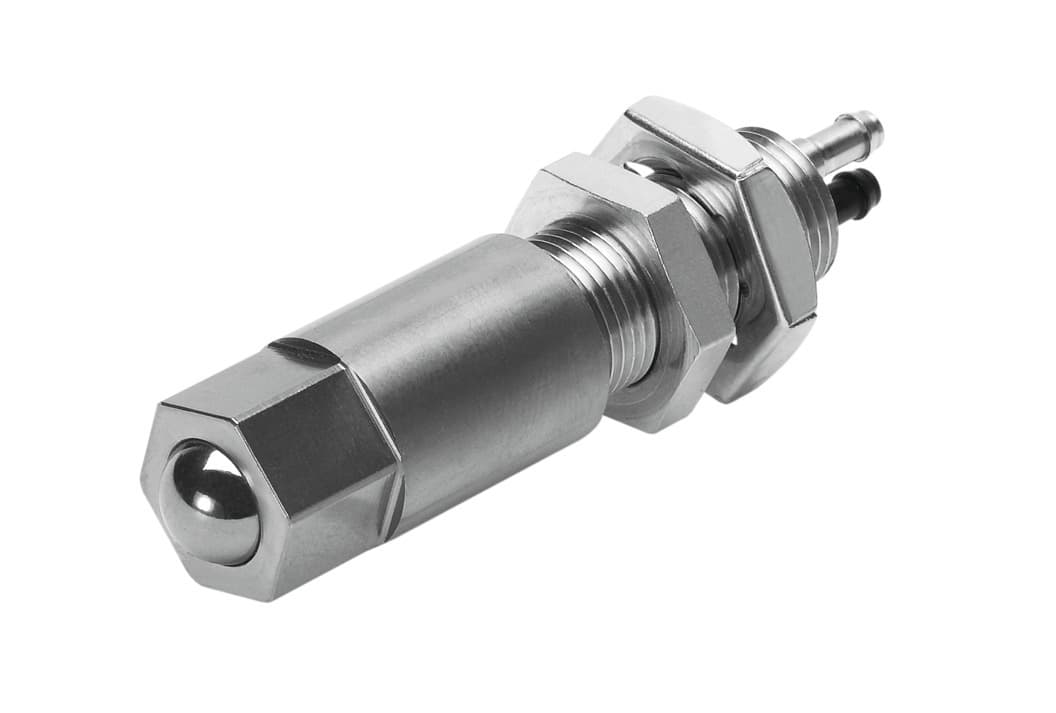

sdk-3-pk-3
Product ID:35
Updated: 2026/4/3
Key Features
- 1Ensure precise end-position sensing and monitoring with the SDK-3-PK-3. 2、Utilize reliable mechanical actuation for consistent operation. 3、Control fluid flow with a 3/2-way, closed monostable valve design. 4、Handle moderate pneumatic demands with a 16 l/min flow rate. 5、Apply across versatile 0-8 bar pressure range applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, closed, monostable | Actuation type | Mechanical |
| Standard nominal flow rate | 16l/min | Pneumatic working port | PK-3 |
| Operating pressure | 0bar 8bar | Structural design | Ball seat |
| Reset method | Mechanical spring | Nominal width | 0.6mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Type of control | Direct | Flow direction | Non-reversible |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 80°C |
| Ambient temperature | -10°C 80°C | Actuating force | 12N |
| Product weight | 50g | Type of mounting | With through-hole |
| Pneumatic connection 1 | PK-3 | Pneumatic connection 2 | PK-3 |
| Pneumatic connection 3 | Not ducted | Manufacturer ID | 8714 |
Specifications may be subject to change without notice
