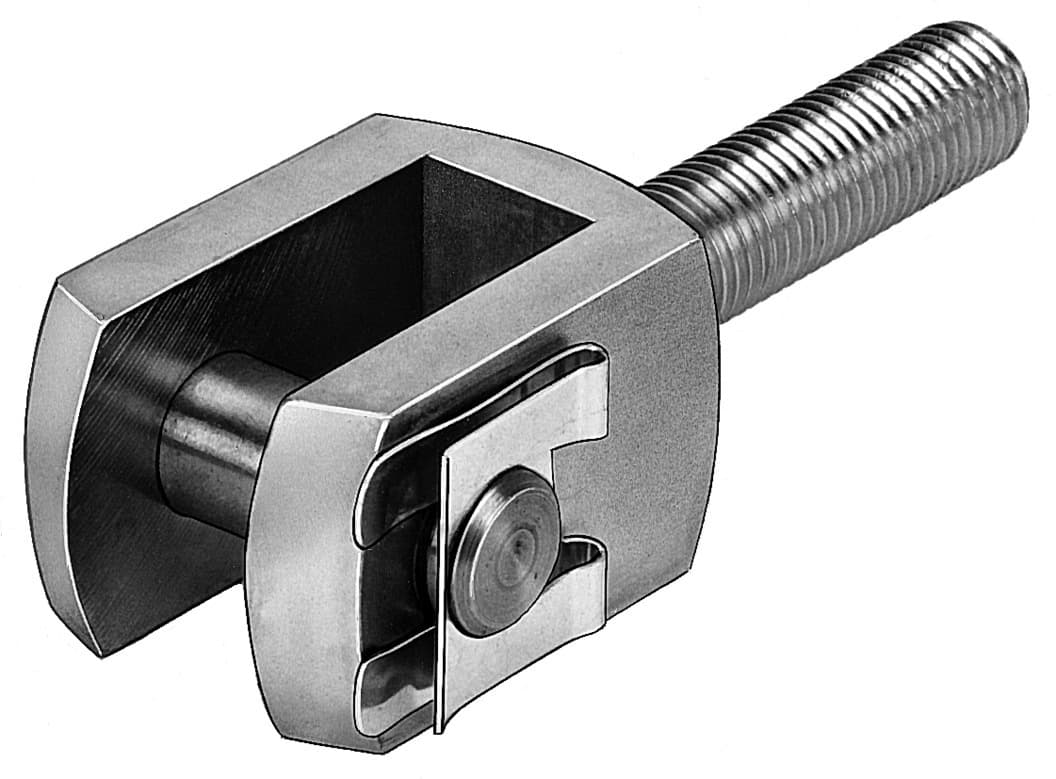

sga-m16
Product ID:14800
Updated: 2026/4/3
Key Features
- 1Install the rod clevis in any arbitrary mounting position for maximum flexibility. 2、Utilize corrosion-resistant materials for long-lasting performance in harsh environments. 3、Achieve precise alignment with radial deviation ±5 mm and angle compensation ±120 degrees. 4、Ensure environmental compliance by meeting RoHS standards. 5、Benefit from durable copper-free construction with zinc-plated steel bolts.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | M16 | Radial deviation +/- | 5mm |
| Angle compensator +/- | 120deg | Mounting position | Any |
| Threaded connection | External thread M16 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -40°C 150°C |
| Product weight | 512g | Note on materials | RoHS-compliant |
| Bolt material | Steel, galvanized | Material of rod eye | Steel Galvanized |
| Fuse material | Spring steel, galvanized | Manufacturer ID | 6524 |
Specifications may be subject to change without notice
