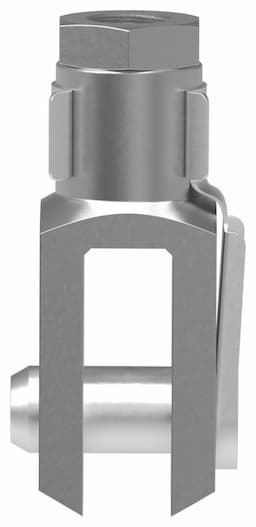

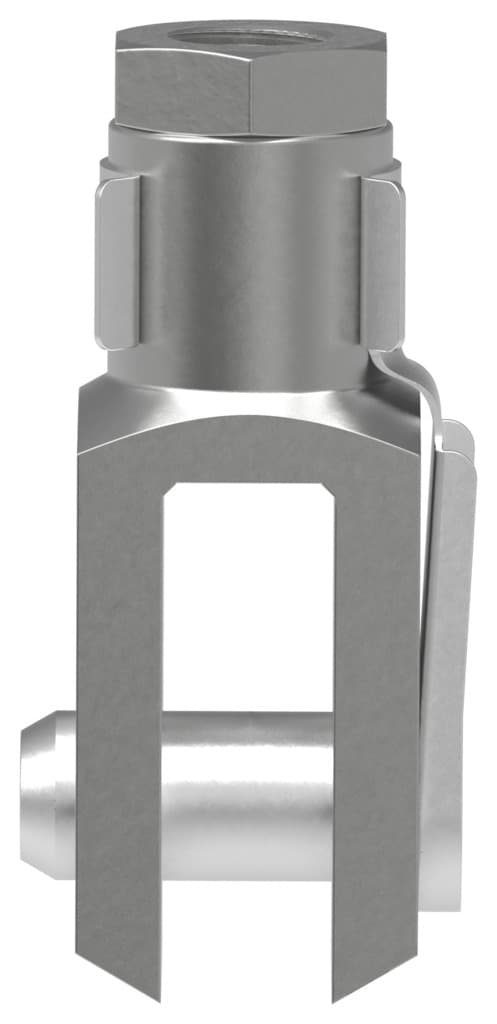

sg-m12x1,25
Product ID:14779
Updated: 2026/7/14
Key Features
- 1Construct durable connections with galvanized steel for longevity.
- 2Resist corrosion effectively in harsh industrial environments.
- 3Mount precisely with ISO 15552 pneumatic cylinder compatibility.
- 4Secure connections reliably using the internal M12x1.25 thread.
- 5Select competitive pricing and quantity options available.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | M12x1.25 | Conforms to standard | DIN 71752 ISO 8140 |
| Threaded connection | Internal thread M12x1.25 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper are excluded from use. Exception are printed circuit boards, cables, electrical connectors and coils |
| Ambient temperature | -40°C 150°C | Product weight | 166g |
| Note on materials | RoHS-compliant | Bolt material | Steel Galvanized |
| Clevis material | Steel Galvanized | Nut material | Steel Galvanized |
| Manufacturer ID | 6145 |
Specifications may be subject to change without notice
