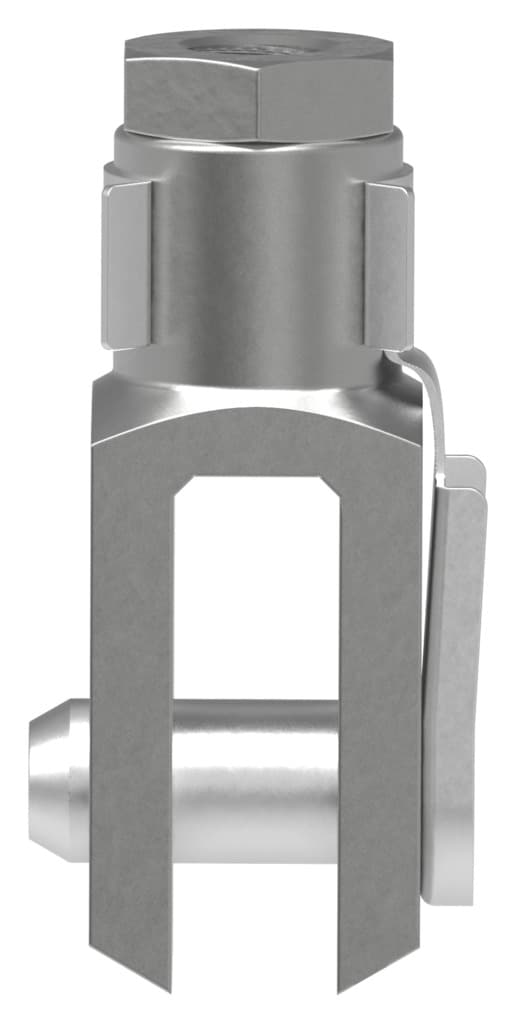

sg-m4
Product ID:14801
Updated: 2026/7/14
Key Features
- 1Enhance corrosion resistance with galvanized steel construction.
- 2Ensure compliance with ISO 8140 and DIN 71752 standards.
- 3Support Li-ion battery production and diverse industrial applications.
- 4Achieve precise fitment with a female M4 threaded connection.
- 5Operate reliably in temperatures from -40 °C to 150 °C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | M4 | Based on norm | ISO 8140 |
| Conforms to standard | DIN 71752 | Threaded connection | Internal thread M4 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper are excluded from use. Exception are printed circuit boards, cables, electrical connectors and coils | Ambient temperature | -40°C 150°C |
| Product weight | 8g | Note on materials | RoHS-compliant |
| Bolt material | Steel Galvanized | Clevis material | Steel Galvanized |
| Nut material | Steel Galvanized | Manufacturer ID | 6532 |
Specifications may be subject to change without notice
