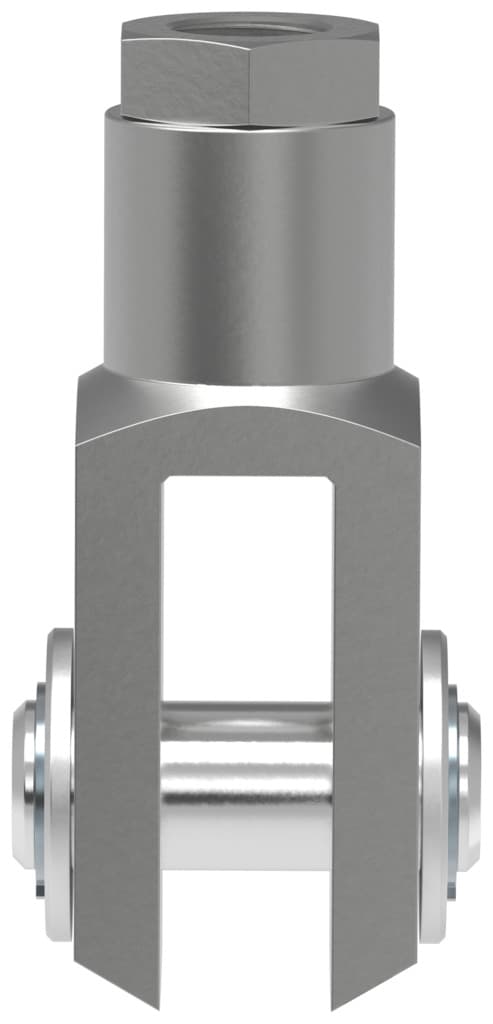

sg-m48x2
Product ID:12
Updated: 2026/7/4
Key Features
- 1Achieve low corrosion stress (CRC 1) and LABS compliance for harsh environments.
- 2Operate effectively across a wide -40°C to 150°C temperature range.
- 3Utilize galvanized steel construction for enhanced strength and protection.
- 4Ensure compatibility by meeting ISO 8140 and ISO 12240-4 standards.
- 5Comply with RoHS regulations using copper and PTFE-free materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | M48x2 | Conforms to standard | ISO 8140 |
| Threaded connection | Internal thread M48x2 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper are excluded from use. Exception are printed circuit boards, cables, electrical connectors and coils |
| Ambient temperature | -40°C 150°C | Product weight | 10029g |
| Note on materials | RoHS-compliant | Bolt material | Steel Galvanized |
| Clevis material | Steel Galvanized | Nut material | Steel Galvanized |
| Manufacturer ID | 9583 |
Specifications may be subject to change without notice
