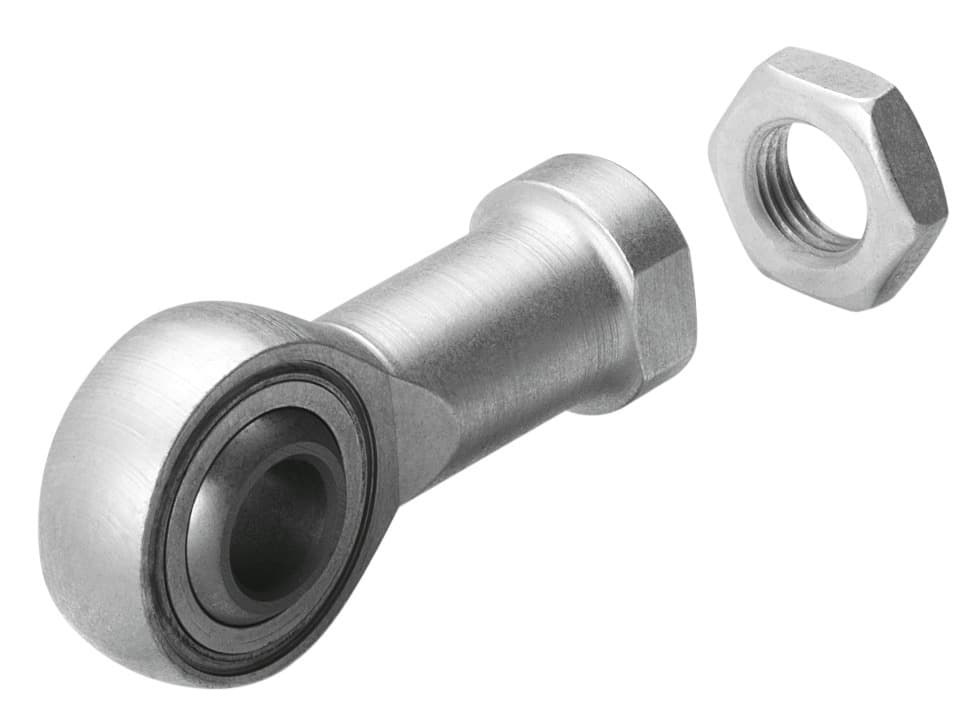

sgs-1-12
Product ID:9578
Updated: 2026/7/19
Key Features
- 1Ensure precise spherical swiveling cylinder mounting for reliable pneumatic operation.
- 2Resist corrosion with a galvanized steel housing and brass outer ring (CRC 1).
- 3Meet environmental standards with RoHS-compliant materials and construction.
- 4Withstand diverse conditions across a -40°C to 150°C operating temperature range.
- 5Ensure broad compatibility using the standard 1-12 UNF-2B thread size.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 1-12 UNF-2B | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -40°C 150°C |
| Product weight | 1333g | Note on materials | RoHS-compliant |
| Material of outer ring | Brass | Housing material | Steel, galvanized |
| Inner raceway material | Steel | Nut material | Steel, galvanized |
| Manufacturer ID | 532700 |
Specifications may be subject to change without notice
