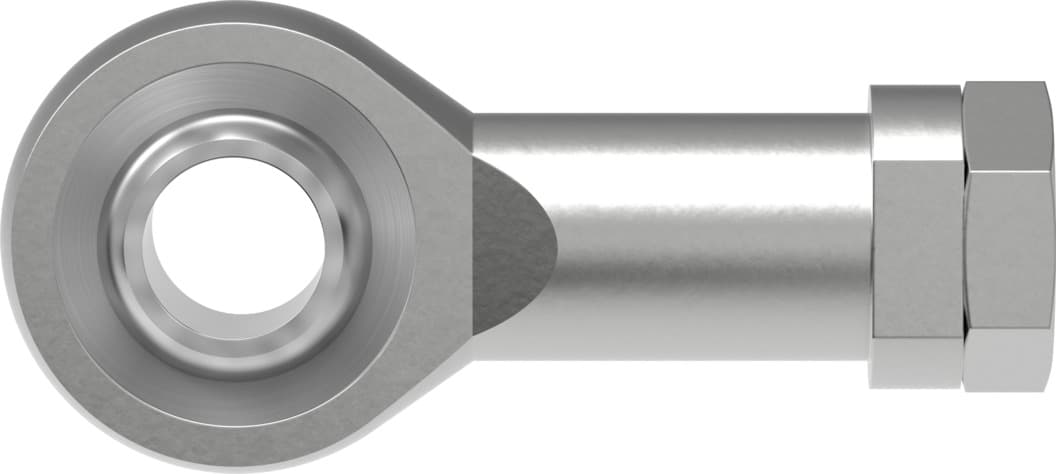

sgs-m16
Product ID:29
Updated: 2026/4/3
Key Features
- 1Constructed from galvanized steel for superior corrosion resistance. 2、Features a brass outer ring for smooth, reliable operation. 3、Operates in a wide temperature range from -40°C to 150°C. 4、Weighs 265 grams for robust yet easy handling. 5、Complies with RoHS for environmental sustainability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | M16 | Based on norm | ISO 12240-4 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 150°C | Product weight | 265g |
| Note on materials | RoHS-compliant | Material of outer ring | Brass |
| Housing material | Steel, galvanized | Inner raceway material | Steel |
| Nut material | Steel, galvanized | Manufacturer ID | 9258 |
Specifications may be subject to change without notice
