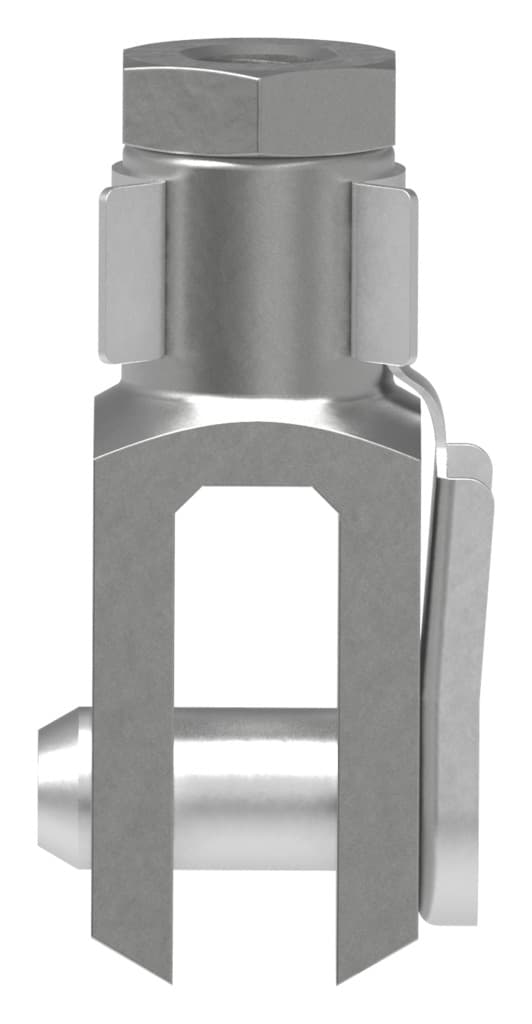

sg-unf5/16"-24-b
Product ID:11208
Updated: 2026/7/15
Key Features
- 1Ensure precise swivel cylinder mounting for reliable operation.
- 2Secure mounting with a standard hexagon nut design.
- 3Meet DIN 71752 and ISO 8140 standards for guaranteed compatibility.
- 4Resist corrosion with CRC 1 rating for harsh environments.
- 5Operate reliably from -40 to 150 °C ambient temperature.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | UNF5/16-24 | Based on norm | DIN 71752 ISO 8140 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 150°C | Product weight | 54.886g |
| Note on materials | RoHS-compliant | Bolt material | Steel Galvanized |
| Clevis material | Steel Galvanized | Nut material | Steel Galvanized |
| Manufacturer ID | 546574 |
Specifications may be subject to change without notice
