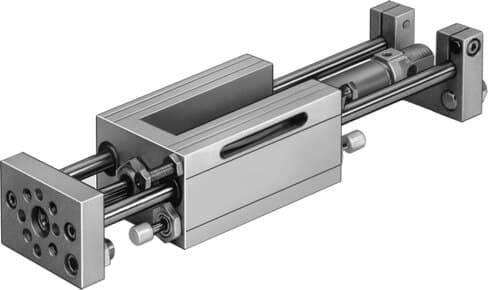

Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Piston rod material | High-alloy stainless steel | Housing material | Aluminium |
| Seal material | PA | Cover material | Aluminium |
| Pneumatic connection | M5 | Additional weight per 10 m stroke | 10 g |
| Basic weight for 0 mm stroke | 560 g | Additional moving mass per 10 mm stroke | 8 g |
| Moving mass for 0 mm stroke | 160 g | Theoretical force at 6 bar, advancing stroke | 47 N |
| Theoretical force at 6 bar, return stroke | 40 N | Ambient temperature | -20 / 80 °C |
| Paint-wetting impairment substances (PWIS) conformity | VDMA24364-B2-L | Corrosion resistance class CRC | 0 - No corrosion resistance |
| Note on operating and pilot medium | Operation with lubricated medium possible (subsequent continuous operation with lubricated medium required) | Operating medium | Compressed air conforming to ISO 8573-1:2010 [7:4:4] |
| Operating mode | Double acting | Operating pressure | 2.5 / 10 bar |
| Position detection | Via proximity switch / Via inductive sensor | Design feature | Guide |
| Guide | Recirculating ball bearing guide | Mounting position | Optional |
| Cushioning | Hydraulic shock absorber, consistent characteristic curve | Operating mode, drive unit | Connection plate |
| Piston diameter | 10 mm | Stroke | 10 / 100 mm |
Specifications may be subject to change without notice
