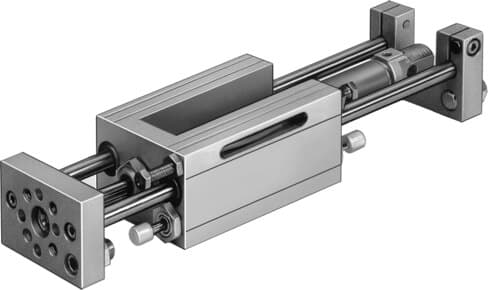

Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cylinder barrel material | High-alloy stainless steel | Piston rod material | High-alloy stainless steel |
| Housing material | Aluminium | Seal material | PA |
| Cover material | Wrought aluminium alloy | Pneumatic connection | G1/8 |
| Additional weight per 10 m stroke | 19 g | Basic weight for 0 mm stroke | 1882 g |
| Additional moving mass per 10 mm stroke | 12 g | Moving mass for 0 mm stroke | 500 g |
| Theoretical force at 6 bar, advancing stroke | 188 N | Theoretical force at 6 bar, return stroke | 158 N |
| Ambient temperature | -20 / 80 °C | Paint-wetting impairment substances (PWIS) conformity | VDMA24364-B2-L |
| Corrosion resistance class CRC | 0 - No corrosion resistance | Note on operating and pilot medium | Operation with lubricated medium possible (subsequent continuous operation with lubricated medium required) |
| Operating medium | Compressed air conforming to ISO 8573-1:2010 [7:4:4] | Operating mode | Double acting |
| Operating pressure | 2.5 / 10 bar | Position detection | Via proximity switch / Via inductive sensor |
| Design feature | Guide | Guide | Recirculating ball bearing guide |
| Mounting position | Optional | Cushioning | Hydraulic shock absorber, consistent characteristic curve |
| Operating mode, drive unit | Connection plate | Piston diameter | 20 mm |
| Stroke | 10 / 320 mm |
Specifications may be subject to change without notice
