Key Features
- No key features available for this product.

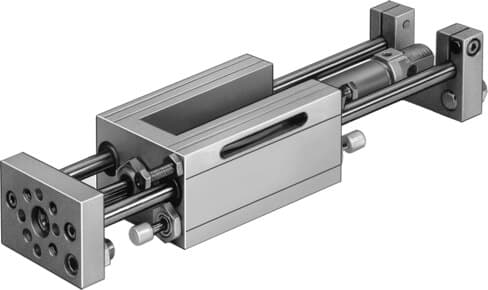

Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cylinder barrel material | Wrought aluminium alloy | Piston rod material | High-alloy steel |
| Housing material | Die-cast aluminium | Seal material | PA |
| Cover material | Die-cast aluminium | Pneumatic connection | G1/8 |
| Additional weight per 10 m stroke | 57 g | Basic weight for 0 mm stroke | 4300 g |
| Additional moving mass per 10 mm stroke | 31 g | Moving mass for 0 mm stroke | 1500 g |
| Theoretical force at 6 bar, advancing stroke | 483 N | Theoretical force at 6 bar, return stroke | 415 N |
| Ambient temperature | -20 / 80 °C | Paint-wetting impairment substances (PWIS) conformity | VDMA24364-B2-L |
| Corrosion resistance class CRC | 0 - No corrosion resistance | Note on operating and pilot medium | Operation with lubricated medium possible (subsequent continuous operation with lubricated medium required) |
| Operating medium | Compressed air conforming to ISO 8573-1:2010 [7:4:4] | Operating mode | Double acting |
| Operating pressure | 1.5 / 12 bar | Position detection | Via proximity switch / Via inductive sensor |
| Design feature | Guide | Guide | Recirculating ball bearing guide |
| Mounting position | Optional | Cushioning | Hydraulic shock absorber, consistent characteristic curve |
| Operating mode, drive unit | Connection plate | Piston diameter | 32 mm |
| Stroke | 10 / 500 mm |
Specifications may be subject to change without notice
