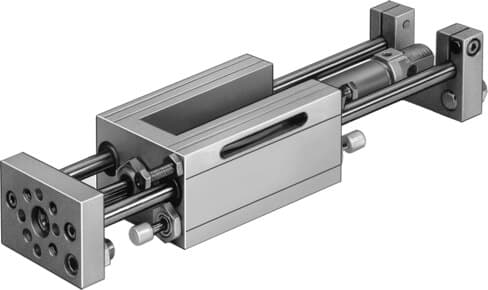

Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cylinder barrel material | Wrought aluminium alloy | Piston rod material | High-alloy steel |
| Housing material | Die-cast aluminium | Seal material | PA |
| Cover material | Die-cast aluminium | Pneumatic connection | G1/4 |
| Additional weight per 10 m stroke | 125 g | Basic weight for 0 mm stroke | 9200 g |
| Additional moving mass per 10 mm stroke | 77 g | Moving mass for 0 mm stroke | 3600 g |
| Theoretical force at 6 bar, forward stroke | 1178 N | Theoretical force at 6 bar, return stroke | 990 N |
| Ambient temperature | -20 / 80 °C | Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B2-L |
| Corrosion resistance class CRC | 0 - No corrosion resistance | Operating and pilot medium note | Operation with lubricated medium possible (subsequent operation must always be with lubricated medium) |
| Operating medium | Compressed air conforming to ISO 8573-1:2010 [7:4:4] | Operating mode | Double acting |
| Operating pressure | 1.5 / 12 bar | Position detection | Via proximity switch / Via inductive sensor |
| Design feature | Guide | Guide | Recirculating ball bearing guide |
| Mounting position | Optional | Cushioning | Hydraulic shock absorber, progressive characteristic curve |
| Operating mode, drive unit | Coupling plate | Piston diameter | 50 mm |
| Stroke | 10 / 500 mm |
