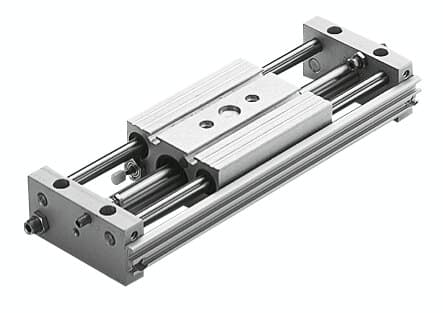

SLM-25- -KF-A
Product ID:513108
Updated: 2026/5/30
Key Features
- No key features available for this product.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing material | Aluminium | Seal material | PA / TPE-U(PU) |
| Cover material | Aluminium | Pneumatic connection | G1/8 |
| Additional weight per 10 mm stroke | 36 g | Basic weight with 0 mm stroke | 3800 g |
| Additional moving mass per 10 mm stroke | 36 g | Moving mass | 2150 g |
| Theoretical force at 6 bar, forward stroke | 295 N | Theoretical force at 6 bar, return stroke | 295 N |
| Ambient temperature | -20 / 60 °C | Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B2-L |
| Corrosion resistance class CRC | 1 - Low corrosion resistance | Note on operating and pilot medium | Operation with lubricated medium possible (subsequent lubricated operation required) |
| Operating medium | Compressed air in accordance with ISO 8573-1:2010 [7:-:-] | Operating mode | Double acting |
| Operating pressure | 7 bar | Variant | Standard / hollow guide rod / hollow guide rod and reversing plate |
| Position detection | Via proximity switch / via inductive sensor | Guide | Recirculating ball bearing guide |
| Mounting position | Optional | Cushioning | Elastic cushioning rings/plates at both ends / hydraulic shock absorber, characteristic curve stable |
| Piston diameter | 25 mm | Stroke | 10 / 1500 mm |
Specifications may be subject to change without notice
