smat-8m-u-e-0,3-m8d
Product ID:12056
Updated: 2026/4/3
Key Features
- 1Deliver ≤0.05 mm resolution for precise position data. 2、Ensure ±0.2 mm repeatability with magnetic sensing. 3、Meet global standards with RCM, CE, and KC-EMV certifications. 4、Withstand harsh environments using IP65/IP68 rated PA6 housing. 5、Simplify integration with analog outputs and plug connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Symbol | 00992260 |
| Certification | RCM compliance mark c UL us - Listed (OL) | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Certificate issuing authority | UL E232949 |
| Note on materials | RoHS-compliant Halogen-free | Application note | https://www.festo.com/Drive-Sensor-Overview |
| Measured variable | Position | Measuring principle | Magnetic Hall |
| Sensing range | 52000μm | Ambient temperature | -40°C 80°C |
| Typical sampling interval | 2ms | Max. travel speed | 3m/s |
| Displacement resolution | 0.02mm | Repetition accuracy | 0.2mm |
| Analog output | 0 - 10 V | Typical linearity error | ±1 mm |
| Short-circuit protection | yes | Overload protection | Available |
| Output signal | Analog | DC operating voltage range | 15V 30V |
| Residual ripple | 10 % | Idle current | 12mA |
| Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 4 |

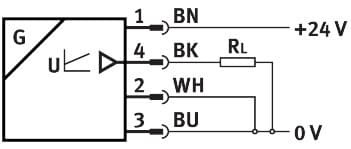

| Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00991171 |
| Connection outlet orientation | Longitudinal | Material of pin contacts | Copper alloy, gold-plated |
| Connector cable test conditions | Flexural strength: as per Festo standard Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm | Cable length | 0.3m |
| Cable characteristic | Suitable for energy chains/robot applications | Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) | Type of mounting | Screwed tightly Can be inserted in slot from above |
| Mounting position | Any | Product weight | 9.5g |
| Housing material | PA-reinforced High-alloy stainless steel | Material of union nut | Brass, nickel-plated |
| Status indicator | LED red, green | Ambient temperature with flexible cable installation | -20°C 70°C |
| Degree of protection | IP65 IP68 | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 4 according to ISO 14644-1 |
| Manufacturer ID | 553744 |
Specifications may be subject to change without notice
