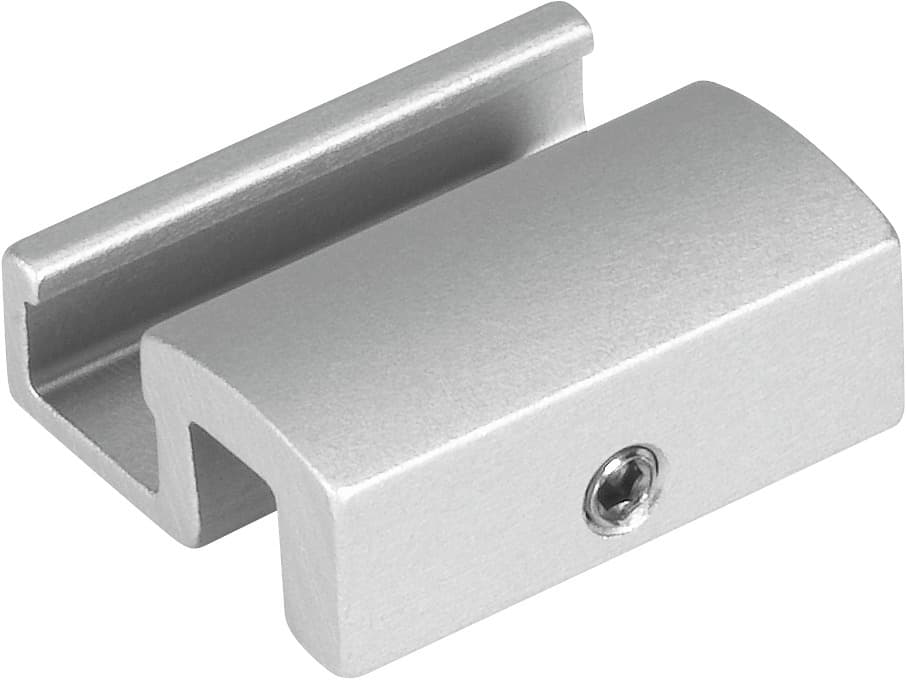

smb-8-c
Product ID:5685
Updated: 2026/4/3
Key Features
- 1Achieve CRC 3 corrosion resistance for severe environments. 2、Ensure food industry compliance with LABS/PWIS standards. 3、Operate reliably from -40°C to 120°C ambient temperature. 4、Secure mounting via a threaded pin for rail stability. 5、Meet VDMA24364-B2-L for quality and safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for mounting rail | Corrosion resistance class (CRC) | 3 - High corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -40°C 120°C | Tightening torque | 0.2Nm 0.6Nm |
| Product weight | 3.5g | Type of mounting | Clamped With threaded pin |
| Note on materials | RoHS-compliant | Retaining bracket material | Wrought aluminum alloy Anodized |
| Material of screws | High-alloy stainless steel | Manufacturer ID | 1806790 |
Specifications may be subject to change without notice
