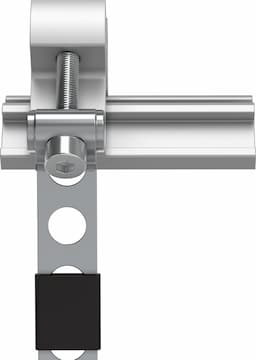

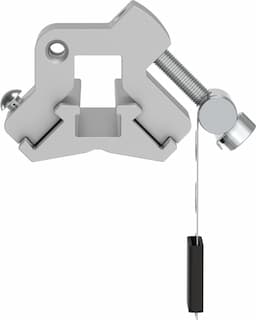

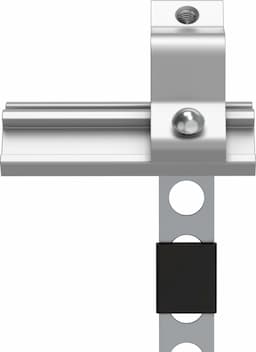

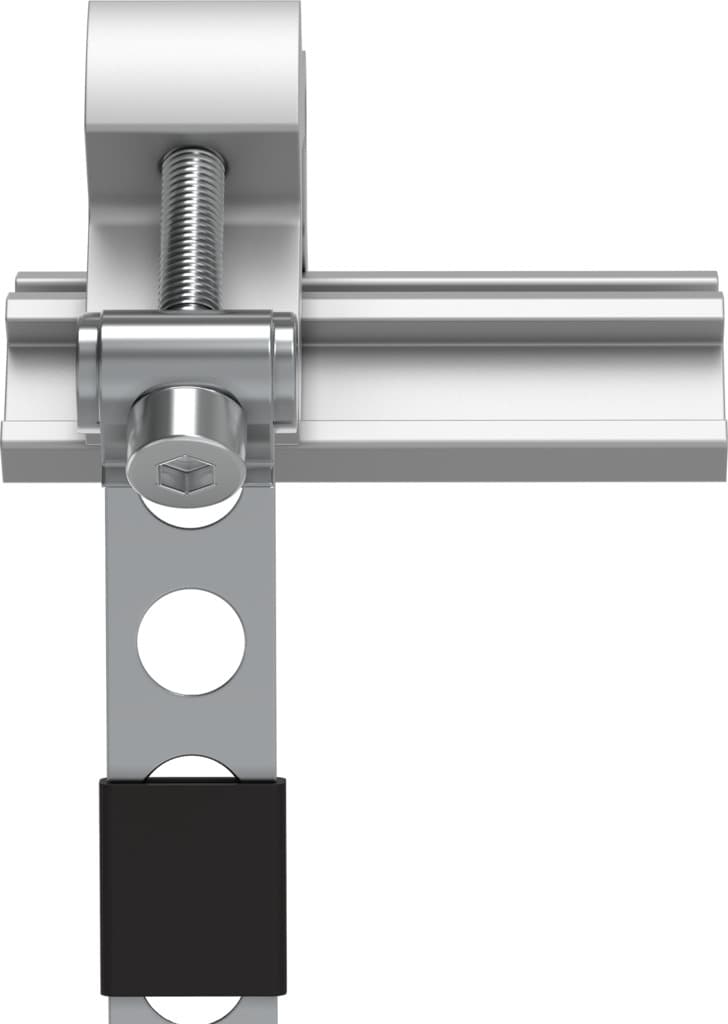

smbr-8-8/100-s6
Product ID:10403
Updated: 2026/4/5
Key Features
- 1Achieve CRC 4 corrosion resistance for demanding environments. 2、Enable versatile T-slot mounting for Ø8 to Ø100 pistons. 3、Construct with high-alloy stainless steel for durability. 4、Meet LABS and VDMA standards for safety compliance. 5、Integrate a compact 20g design into tight spaces.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 8 | Design | for T-slot |
| Mounting position | Any | for piston ? | ?8 - ?100 |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | Ambient temperature | -20°C 120°C |
| Product weight | 20g | Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy Anodized High-alloy stainless steel | Material of screws | High-alloy stainless steel |
| Manufacturer ID | 538937 |
Specifications may be subject to change without notice
