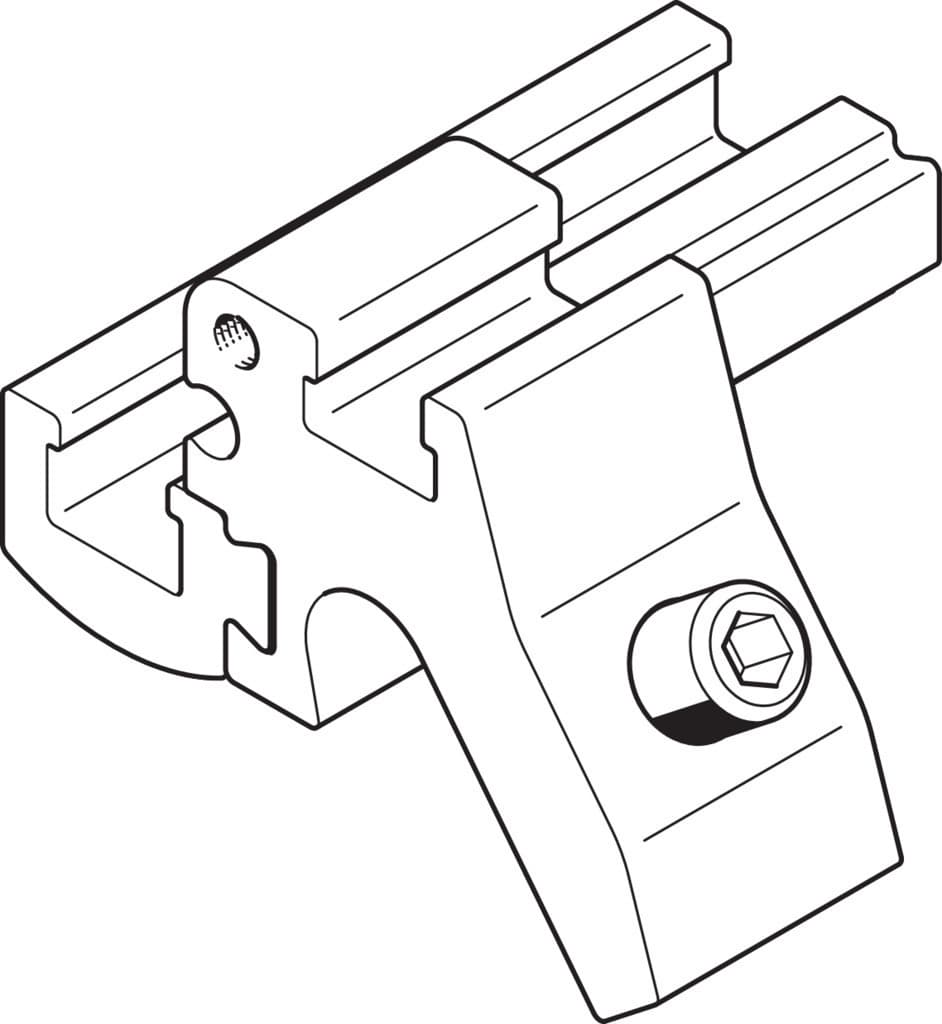

smbz-8-125/320
Product ID:10326
Updated: 2026/7/19
Key Features
- 1Secure sensors on tie rods for Ø125-320mm pistons.
- 2Construct with anodized aluminum and stainless steel screws.
- 3Operate reliably from -40°C to 120°C ambient temperature.
- 4Ensure compliance with RoHS and VDMA24364-B2-L standards.
- 5Simplify installation with a lightweight 14g design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 8 | Design | for tie rods |
| Mounting position | Any | for piston ? | ?125 - ?320 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 120°C | Tightening torque | 0.5Nm |
| Product weight | 14g | Type of mounting | Clamped |
| Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy, anodized |
| Material of screws | High-alloy stainless steel | Manufacturer ID | 537808 |
Specifications may be subject to change without notice
