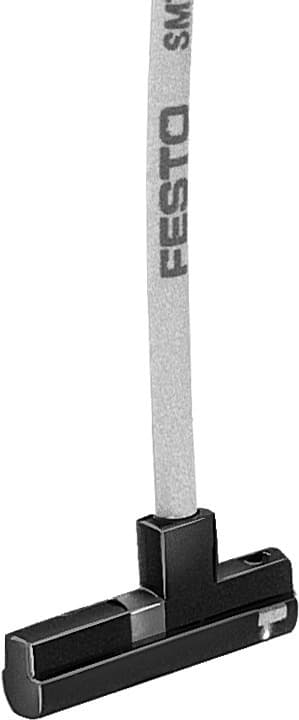

Key Features
- 1Ensure safety compliance with ISO 13849-1 certification for reliable performance. 2、Achieve precise detection using a reed magnetic measurement principle. 3、Operate reliably from -20°C to 70°C with 12-27V AC/DC voltage. 4、Enable high-speed applications with <0.6 ms switch on/off times. 5、Withstand harsh conditions via stainless steel and IP65/67 housing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for round slot | Conforms to standard | EN 60947-5-2 |
| Symbol | 00991620 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position | Measuring principle | Magnetic reed |
| Ambient temperature | -20°C 70°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar | Switching element function | N/O contact |
| On time | 0.6ms | Switch-off time | 0.05ms |
| Max. switching frequency | 500Hz | Max. output current | 100mA |
| Max. switching capacity DC | 1W | Voltage drop | 0V |
| Short-circuit protection | no | Overload protection | Not available |
| Operating voltage range AC | 12V 27V | DC operating voltage range | 12V 27V |
| Reverse polarity protection | no | Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 3 |
| Connection outlet orientation | Transverse | Cable length | 2.5m |
| Color cable sheath | Gray | Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Clamped in round slot Can be inserted in slot lengthwise | Tightening torque | 0.1Nm |
| Mounting position | Any | Product weight | 20g |
| Housing colour | Black | Housing material | PPS High-alloy stainless steel |
| Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -5°C 70°C |
| Degree of protection | IP65 IP67 | Insulation voltage | 50V |
| Surge resistance | 0.8kV | LABS (PWIS) conformity | VDMA24364-B2-L |
| Contamination level | 3 | Manufacturer ID | 173211 |
Specifications may be subject to change without notice
