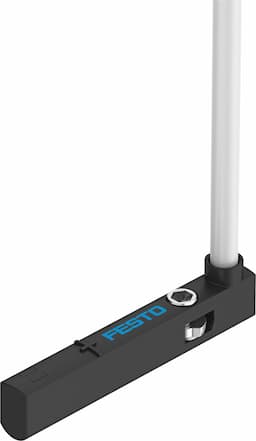

Key Features
- 1Achieve ±0.1 mm switching accuracy for precise industrial measurements. 2、Resist oil exposure in harsh manufacturing environments reliably. 3、Operate reliably across a wide -40°C to 70°C temperature range. 4、Meet EN 60947-5-2 and CE EMC standards for EU compliance. 5、Utilize a reed magnetic principle for consistent, dependable sensing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for round slot | Conforms to standard | EN 60947-5-2 |
| Symbol | 00991619 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Special features | Oil-resistant | Note on materials | RoHS-compliant Halogen-free |
| Application note | Support / actuator-sensor overview "The right sensor for the actuator" | Measured variable | Position |
| Measuring principle | Magnetic reed | Ambient temperature | -40°C 70°C |
| Repetition accuracy | 0.2mm | Switching output | Contact-based, bipolar |
| Switching element function | N/O contact | On time | 1.2ms |
| Switch-off time | 1ms | Max. switching frequency | 50Hz |
| Max. output current | 300mA | Max. output current in mounting kits | 50mA |
| Min. switching capacity AC | 9VA | Max. switching capacity DC | 9W |
| Max. switching capacity DC in mounting kits | 1.5W | Max. switching capacity AC in mounting kits | 1.5VA |
| Voltage drop | 1.5V | Short-circuit protection | no |
| Overload protection | Not available | Rated operating voltage DC | 24V |
| Operating voltage range AC | 5V 30V | DC operating voltage range | 5V 30V |
| Reverse polarity protection | no | Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00991155 |
| Connection outlet orientation | Transverse | Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm |
| Cable length | 0.3m | Cable characteristic | Suitable for energy chains/robot applications |
| Material of cable sheath | TPE-U(PUR) | Type of mounting | Screwed tightly Can be inserted in slot from above |
| Max. tightening torque | 0.4Nm | Mounting position | Any |
| Product weight | 6.7g | Housing material | PA-reinforced High-alloy stainless steel |
| Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -20°C 70°C |
| Degree of protection | IP65 IP68 | LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer ID | 551368 |
Specifications may be subject to change without notice
