Key Features
- 1Achieve 0.2 mm repetition accuracy for precise measurements.
- 2Meet EN 60947-5-2 standards with CE marking for compliance.
- 3Integrate easily using the universal C-slot mounting design.
- 4Ensure durability with brass, nickel-plated housing and stainless steel.
- 5Simplify installation with a 0.3m cable and M8 connector.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for round slot | Conforms to standard | EN 60947-5-2 |
| Symbol | 00991619 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position | Measuring principle | Magnetic reed |
| Ambient temperature | -20°C 70°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar | Switching element function | N/O contact |
| On time | 0.6ms | Switch-off time | 0.05ms |
| Max. switching frequency | 500Hz | Max. output current | 100mA |
| Max. switching capacity DC | 1W | Voltage drop | 0V |
| Short-circuit protection | no | Overload protection | Not available |
| Operating voltage range AC | 12V 27V | DC operating voltage range | 12V 27V |
| Reverse polarity protection | no | Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection for input 1, connection pattern | 00991155 | Connection outlet orientation | Longitudinal |
| Cable length | 0.3m | Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) | Type of mounting | Clamped in round slot Can be inserted in slot lengthwise |
| Tightening torque | 0.1Nm | Mounting position | Any |
| Product weight | 5g | Housing colour | Black |
| Housing material | Brass, nickel-plated PPS TPE-U(PU) High-alloy stainless steel | Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5°C 70°C | Degree of protection | IP65 IP67 |
| Insulation voltage | 50V | Surge resistance | 0.8kV |
| LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
| Manufacturer ID | 173212 |
Specifications may be subject to change without notice

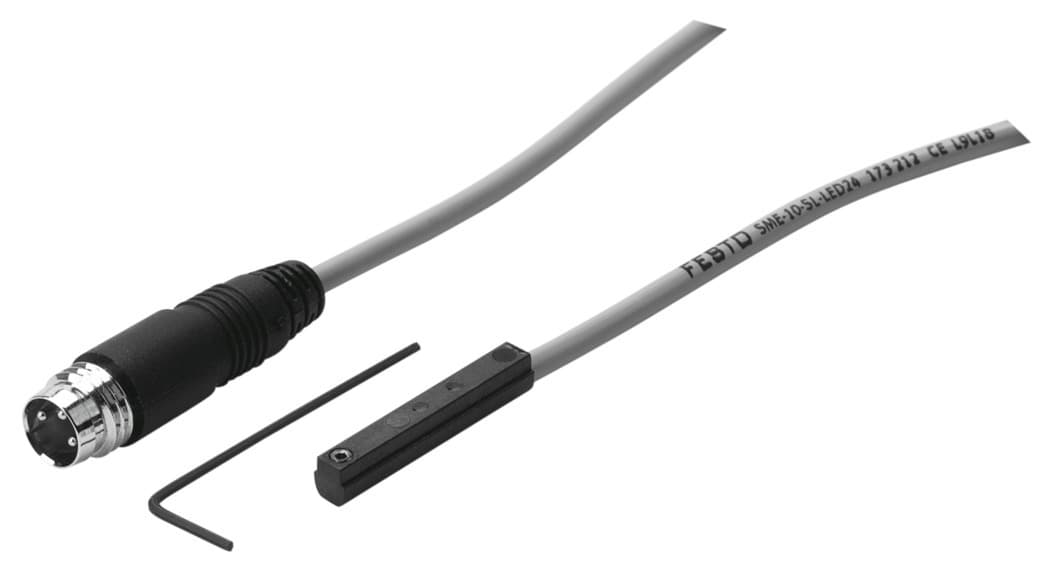

Still deciding on sme-10-sl-led-24?
