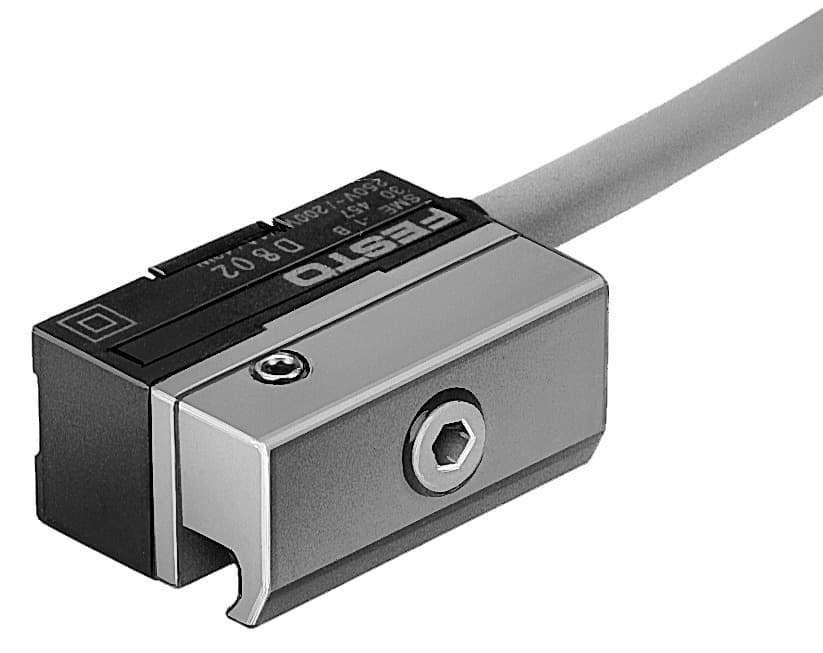

Key Features
- 1Achieve 0.2 mm repeat accuracy for reliable detection. 2、Withstand harsh conditions with an IP67-rated robust block design. 3、Operate across a wide 0-250V AC/DC voltage range. 4、Ensure safety and compliance with CE, EMC, and RoHS certifications. 5、Reduce downtime with a durable magnetic reed switch mechanism.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Block design | Conforms to standard | DIN EN 60947-5-2 |
| Symbol | 00991624 | CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions To UK instructions for electrical equipment | Note on materials | RoHS-compliant |
| Measured variable | Position | Measuring principle | Magnetic reed |
| Ambient temperature | -20°C 70°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar | Switching element function | N/O contact |
| On time | 0.5ms | Switch-off time | 0.03ms |
| Max. switching frequency | 500Hz | Max. output current | 1000mA |
| Max. output current AC | 1000mA | Max. output current DC | 1000mA |
| Min. switching capacity AC | 40VA | Max. switching capacity DC | 40W |
| Voltage drop | 0V | Residual current | 0mA |
| Short-circuit protection | no | Overload protection | Not available |
| Operating voltage range AC | 0V 250V | DC operating voltage range | 0V 200V |
| Reverse polarity protection | no | Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 2 |
| Connection outlet orientation | Longitudinal | Cable length | 2.5m |
| Color cable sheath | Gray | Material of cable sheath | PVC |
| Type of mounting | With accessories | Tightening torque | 2.9Nm |
| Mounting position | Any | Product weight | 130g |
| Housing colour | Black | Housing material | Epoxy resin PC PET Steel TPE-O Die-cast zinc |
| Ambient temperature with flexible cable installation | -5°C 70°C | Degree of protection | IP67 |
| Insulation voltage | 250V | Surge resistance | 4kV |
| LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
| Manufacturer ID | 151668 |
Specifications may be subject to change without notice
