Key Features
- 1Achieve 0.2 mm repeat accuracy for precise positioning.
- 2Utilize robust magneto-inductive measuring principle.
- 3Withstand harsh conditions with an IP67 protection rating.
- 4Simplify installation with flexible mounting accessories.
- 5Monitor status clearly via the yellow LED indicator.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Block design | Symbol | 00991145 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
| Measured variable | Position | Measuring principle | Magnetic reed |
| Ambient temperature | -20°C 70°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar | Switching element function | N/O contact |
| On time | 0.5ms | Max. switching frequency | 500Hz |
| Max. output current | 1000mA | Min. switching capacity AC | 27VA |
| Max. switching capacity DC | 27W | Short-circuit protection | no |
| Overload protection | Not available | Operating voltage range AC | 12V 27V |
| DC operating voltage range | 12V 27V | Reverse polarity protection | no |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
| Cable length | 2.5m | Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) | Type of mounting | With accessories |
| Mounting position | Any | Product weight | 110g |
| Housing colour | Black | Housing material | Epoxy resin PET-reinforced Steel Steel, galvanized Die-cast zinc |
| Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -5°C 70°C |
| Degree of protection | IP67 | LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer ID | 151669 |
Specifications may be subject to change without notice

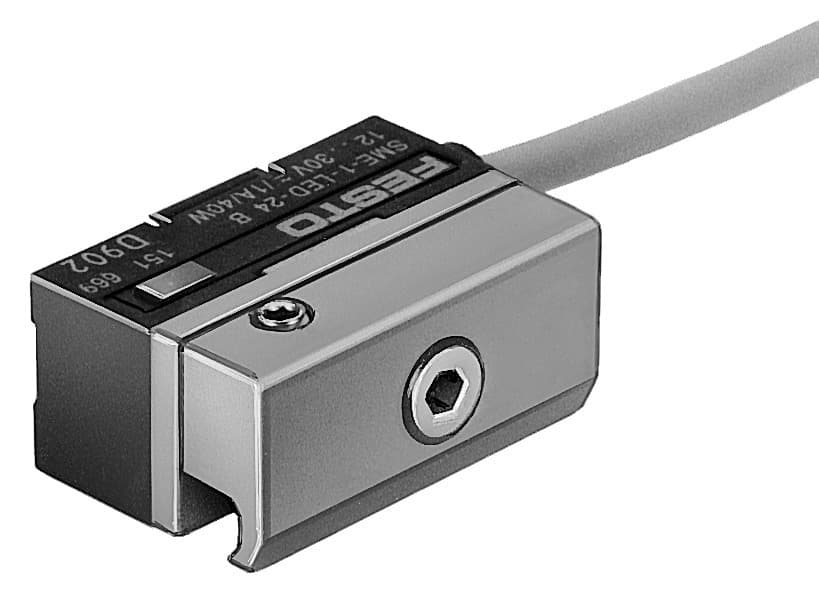

Still deciding on sme-1-led-24-b?
