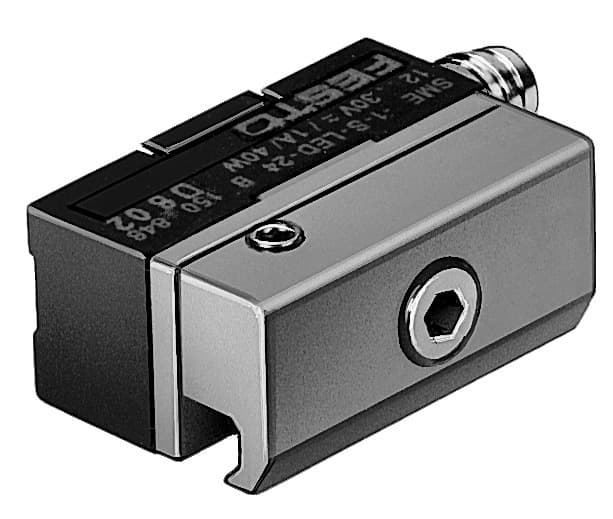

Key Features
- 1Utilize magnetic reed technology for accurate, reliable measurements. 2、Integrate easily with a compact, block design. 3、Withstand harsh conditions with IP67 protection. 4、Operate flexibly with 12-27V DC/AC voltage. 5、Seamlessly connect systems via contact-based output.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Block design | Symbol | 00995365 |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Measured variable | Position |
| Measuring principle | Magnetic reed | Ambient temperature | -20°C 70°C |
| Repetition accuracy | 0.2mm | Switching output | Contact-based, bipolar |
| Switching element function | N/O contact | On time | 0.5ms |
| Max. switching frequency | 500Hz | Max. output current | 1000mA |
| Min. switching capacity AC | 27VA | Max. switching capacity DC | 27W |
| Short-circuit protection | no | Overload protection | Not available |
| DC operating voltage range | 0V 30V | Reverse polarity protection | no |
| Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 3 | Electrical connection for input 1, connection pattern | 00992826 |
| Connection outlet orientation | Longitudinal | Type of mounting | With accessories |
| Mounting position | Any | Product weight | 45g |
| Housing colour | Black | Housing material | Epoxy resin PET Steel Steel, galvanized Die-cast zinc |
| Ambient temperature with flexible cable installation | -5°C 70°C | Degree of protection | IP67 |
| LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 150850 |
Specifications may be subject to change without notice
