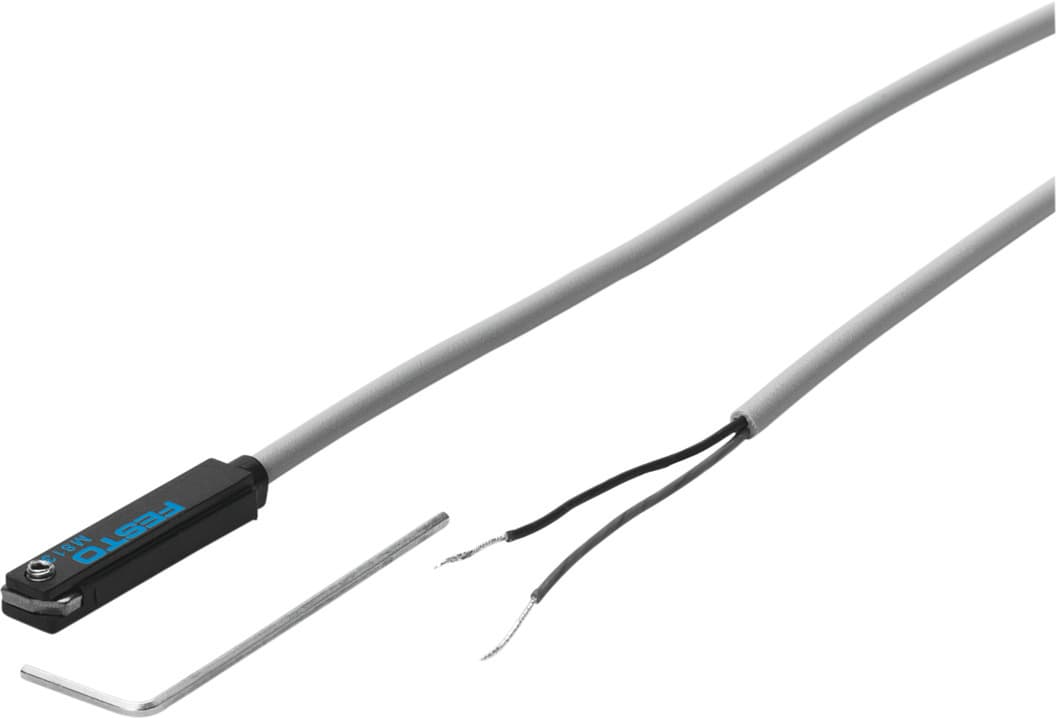

sme-8-k-24-s6
Product ID:4192
Updated: 2026/4/3
Key Features
- 1Achieve 0.2 mm repetition accuracy for precise measurements. 2、Operate reliably from -40°C to 120°C ambient temperature. 3、Ensure compliance with EU CE and RoHS directives. 4、Deliver reliable operation with 800 Hz switching frequency. 5、Construct with high-alloy stainless steel for robust durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Conforms to standard | EN 60947-5-2 |
| Symbol | 00991624 | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
| Application note | Only for fixed cable installation | Measured variable | Position |
| Measuring principle | Magnetic reed | Ambient temperature | -40°C 120°C |
| Repetition accuracy | 0.2mm | Switching output | Contact-based, bipolar |
| Switching element function | N/O contact | On time | 0.5ms |
| Switch-off time | 0.03ms | Max. switching frequency | 800Hz |
| Max. output current | 500mA | Min. switching capacity AC | 10VA |
| Max. switching capacity DC | 10W | Voltage drop | 0V |
| Minimum load current | 0mA | Short-circuit protection | no |
| Overload protection | Not available | Operating voltage range AC | 0V 30V |
| DC operating voltage range | 0V 30V | Reverse polarity protection | no |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 2 | Connection outlet orientation | Longitudinal |
| Cable length | 2.5m | Material of cable sheath | TPE-S |
| Type of mounting | Clamped in T slot Can be inserted in slot lengthwise | Tightening torque | 0.2Nm |
| Mounting position | Any | Product weight | 50g |
| Housing colour | Black | Housing material | Epoxy resin PET High-alloy stainless steel |
| Ambient temperature with flexible cable installation | -5°C 120°C | Degree of protection | IP67 |
| Insulation voltage | 50V | Surge resistance | 0.8kV |
| Vibration resistance to DIN/IEC 68 Part 2-6 | Tested as per severity level 2 | Continuous shock resistance to DIN/IEC 68 Part 2-82 | Tested as per severity level 2 |
| LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
| Manufacturer ID | 161756 |
Specifications may be subject to change without notice
