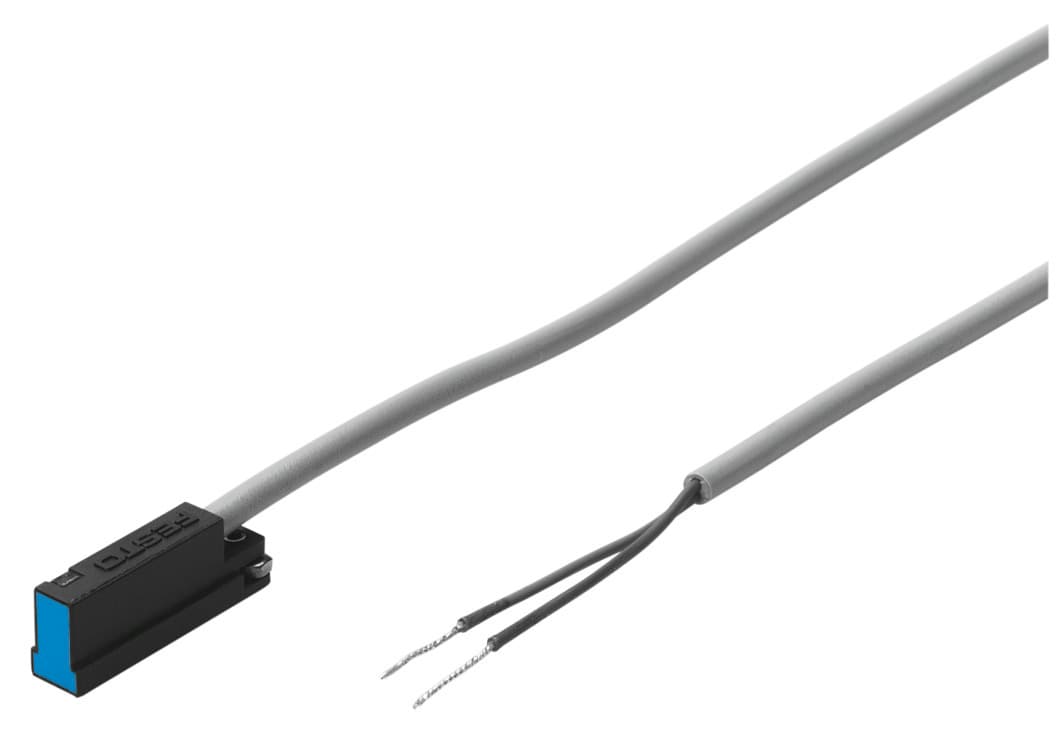

sme-8-k-led-230
Product ID:2341
Updated: 2026/4/3
Key Features
- 1Ensure precise detection in T-slot applications with magnetic reed technology. 2、Meet EN 60947-5-2, CE, and RCM standards for compliance. 3、Operate flexibly from 3 to 230 V AC and DC. 4、Monitor status via yellow LED with durable IP68 protection. 5、Connect reliably with a 2.5 m TPE-U(PUR) cable.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Conforms to standard | EN 60947-5-2 |
| Symbol | 00991624 | Certification | CCC RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions To UK instructions for electrical equipment |
| Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position | Measuring principle | Magnetic reed |
| Ambient temperature | -30°C 60°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar | Switching element function | N/O contact |
| Reproducibility of switching value | +/- 0.1 mm | On time | 2ms |
| Switch-off time | 0.03ms | Max. switching frequency | 500Hz |
| Max. output current | 120mA | Min. switching capacity AC | 10VA |
| Max. switching capacity DC | 10W | Voltage drop | 3.9V |
| Inductive protective circuit | Adapted to MZ, MY and ME coils | Minimum load current | 5mA |
| Residual current | 0mA | Short-circuit protection | no |
| Overload protection | Not available | Operating voltage range AC | 3V 230V |
| DC operating voltage range | 3V 230V | Reverse polarity protection | no |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 2 | Connection outlet orientation | Longitudinal |
| Cable length | 2.5m | Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) | Type of mounting | Clamped in T slot Can be inserted in slot lengthwise |
| Tightening torque | 0.2Nm | Mounting position | Any |
| Product weight | 39g | Housing colour | Black |
| Housing material | Epoxy resin PET High-alloy stainless steel | Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5°C 60°C | Degree of protection | IP68 |
| Insulation voltage | 2500V | Surge resistance | 4kV |
| Vibration resistance to DIN/IEC 68 Part 2-6 | Tested as per severity level 2 | Continuous shock resistance to DIN/IEC 68 Part 2-82 | Tested as per severity level 2 |
| LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
| Manufacturer ID | 152820 |
Specifications may be subject to change without notice
