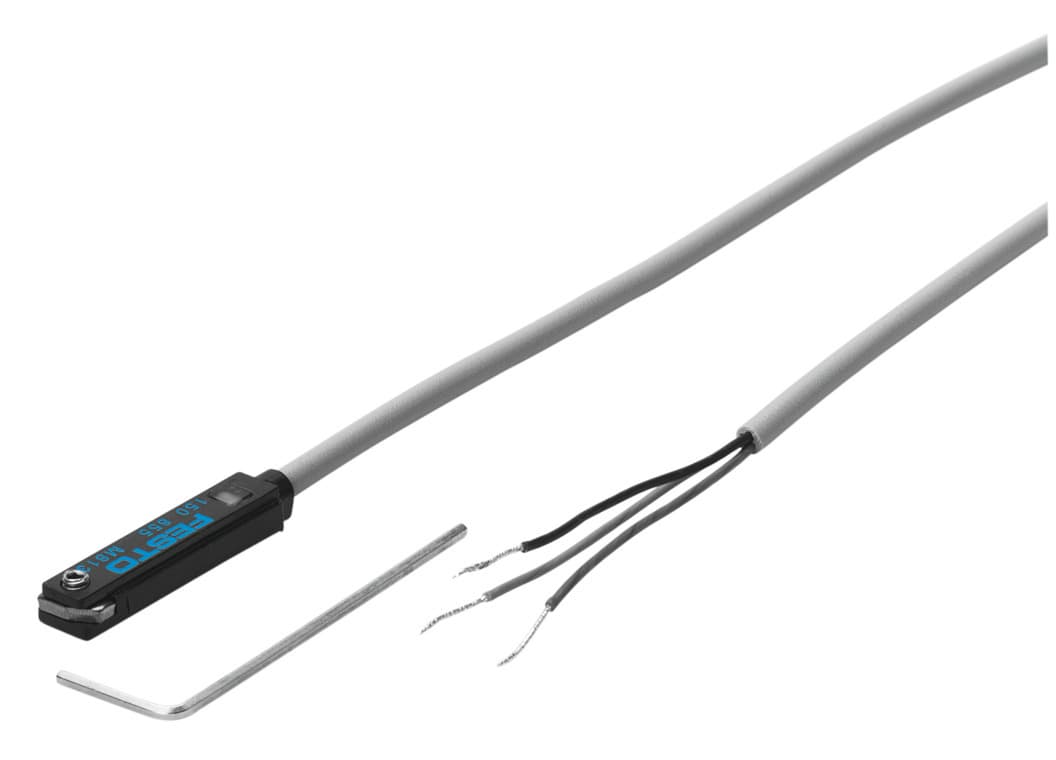

sme-8-o-k-led-24
Product ID:4013
Updated: 2026/4/3
Key Features
- 1Achieve high 0.2 mm repetition accuracy for precise measurements. 2、Construct housing from durable epoxy resin, PC, PET, and stainless steel. 3、Install easily by clamping or inserting into a T-slot. 4、Operate reliably from -40°C to 60°C with 12-30V AC/DC. 5、Ensure protection with an IP67 rating against dust and water.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Conforms to standard | EN 60947-5-2 |
| Symbol | 00991147 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position | Measuring principle | Magnetic reed |
| Ambient temperature | -40°C 60°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar | Switching element function | N/C contact |
| On time | 2ms | Switch-off time | 0.2ms |
| Max. switching frequency | 500Hz | Max. output current | 50mA |
| Min. switching capacity AC | 1.5VA | Max. switching capacity DC | 1.5W |
| Voltage drop | 2.5V | Short-circuit protection | no |
| Overload protection | Not available | Operating voltage range AC | 12V 30V |
| DC operating voltage range | 12V 30V | Reverse polarity protection | no |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
| Cable length | 7.5m | Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) | Type of mounting | Clamped in T slot Can be inserted in slot lengthwise |
| Tightening torque | 0.2Nm | Mounting position | Any |
| Product weight | 50g | Housing colour | Black |
| Housing material | Epoxy resin PC PET High-alloy stainless steel | Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5°C 60°C | Degree of protection | IP67 |
| Insulation voltage | 50V | Surge resistance | 0.8kV |
| LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
| Manufacturer ID | 160251 |
Specifications may be subject to change without notice
