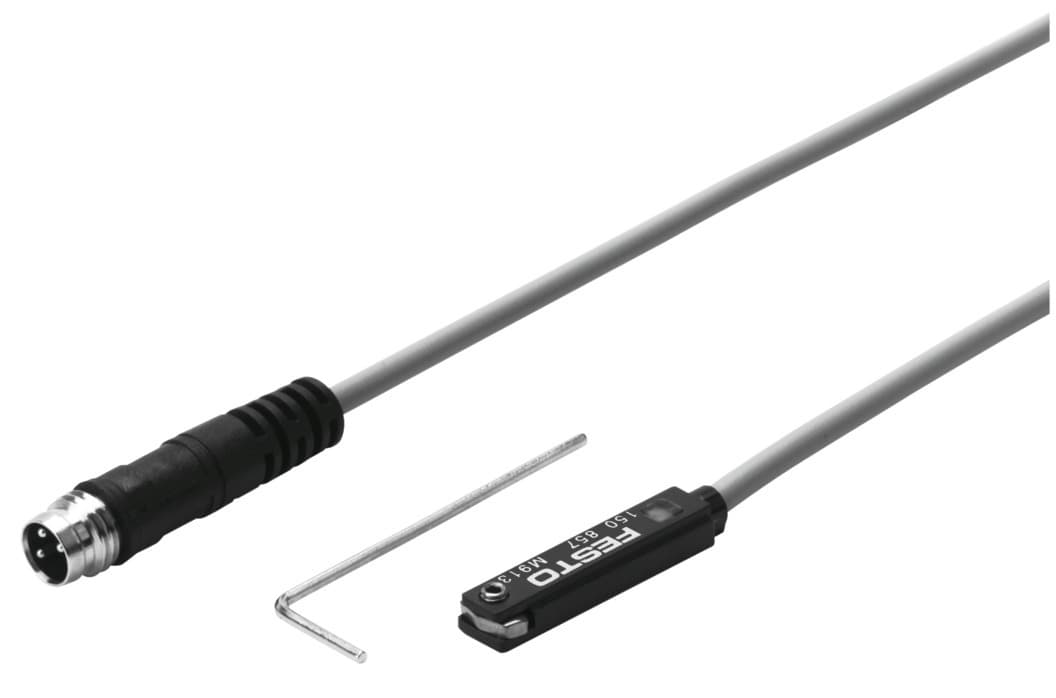

sme-8-s-led-24
Product ID:2203
Updated: 2026/7/4
Key Features
- 1Achieve high accuracy with 0.2 mm repetition.
- 2Operate reliably from -40°C to 70°C with IP67.
- 3Install easily into T-slots with 0.2 Nm torque.
- 4Ensure compliance with EN 60947-5-2 and CE.
- 5Connect via versatile M8 A-coded 3-pin plug.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Conforms to standard | EN 60947-5-2 |
| Symbol | 00991148 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position | Measuring principle | Magnetic reed |
| Ambient temperature | -40°C 70°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar | Switching element function | N/O contact |
| Reproducibility of switching value | +/- 0.1 mm | On time | 0.5ms |
| Switch-off time | 0.03ms | Max. switching frequency | 800Hz |
| Max. output current | 500mA | Min. switching capacity AC | 10VA |
| Max. switching capacity DC | 10W | Inductive protective circuit | Adapted to MZ, MY and ME coils |
| Short-circuit protection | no | Overload protection | Not available |
| Operating voltage range AC | 12V 30V | DC operating voltage range | 12V 30V |
| Reverse polarity protection | no | Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection for input 1, connection pattern | 00991155 | Connection outlet orientation | Longitudinal |
| Material of pin contacts | Brass Nickel-plated | Material of plug housing | TPE-U(PU) |
| Cable length | 0.3m | Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) | Type of mounting | Clamped in T slot Can be inserted in slot lengthwise |
| Tightening torque | 0.2Nm | Mounting position | Any |
| Product weight | 8g | Housing colour | Black |
| Housing material | Epoxy resin PC PET High-alloy stainless steel | Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5°C 70°C | Degree of protection | IP67 |
| Insulation voltage | 50V | Surge resistance | 0.8kV |
| LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
| Manufacturer ID | 150857 |
Specifications may be subject to change without notice
