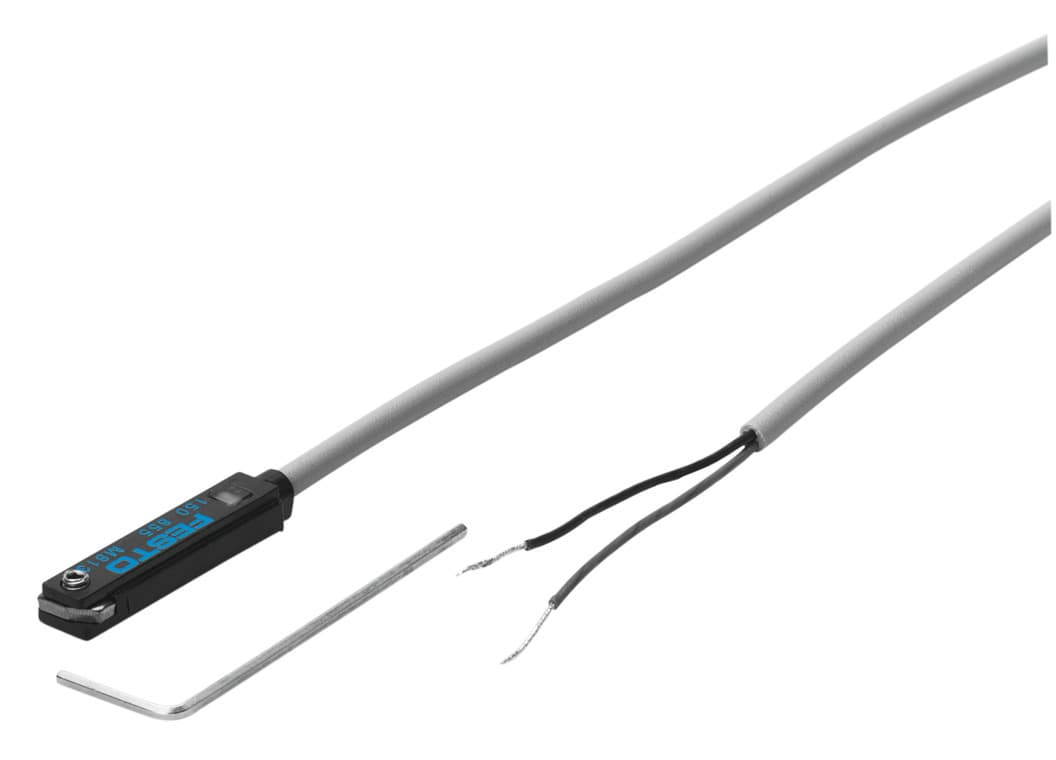

sme-8-zs-kl-led-24
Product ID:5129
Updated: 2026/4/3
Key Features
- 1Install easily with T-slot mounting for secure placement. 2、Operate across 12-27V DC for broad system compatibility. 3、Detect precisely using a magnetic reed contact principle. 4、Withstand harsh conditions with IP67 dust/water protection. 5、Connect reliably with a 2.5m TPE-U(PUR) cable.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Conforms to standard | EN 60947-5-2 |
| Symbol | 00991144 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position | Measuring principle | Magnetic reed |
| Ambient temperature | -40°C 60°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar Without LED function | Switching element function | N/O contact |
| On time | 0.5ms | Switch-off time | 0.03ms |
| Max. switching frequency | 800Hz | Max. output current | 80mA |
| Max. switching capacity DC | 2.16W | Voltage drop | 3.5V |
| Short-circuit protection | no | Overload protection | Not available |
| DC operating voltage range | 12V 27V | Reverse polarity protection | no |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 2 | Connection outlet orientation | Longitudinal |
| Cable length | 2.5m | Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) | Type of mounting | Clamped in T slot Can be inserted in slot lengthwise |
| Tightening torque | 0.2Nm | Mounting position | Any |
| Product weight | 27.9g | Housing colour | Black |
| Housing material | Epoxy resin PC PET High-alloy stainless steel | Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5°C 60°C | Degree of protection | IP67 |
| Insulation voltage | 50V | Surge resistance | 0.8kV |
| LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
| Manufacturer ID | 171169 |
