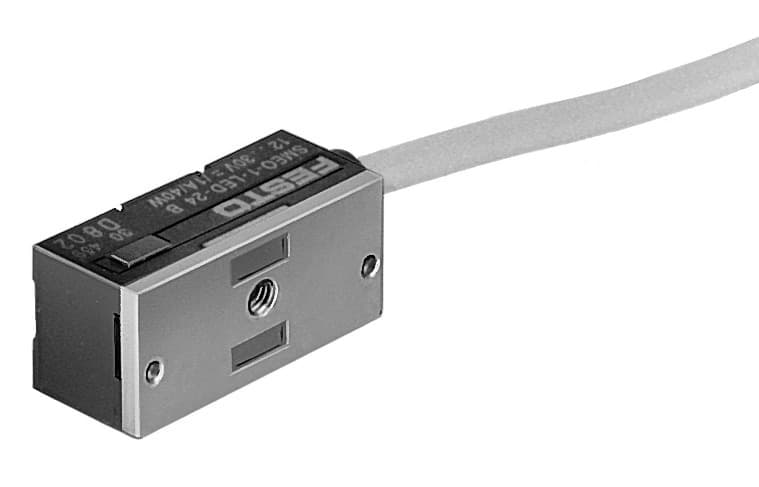

Key Features
- 1Achieve ±0.1 mm high repeat accuracy for precise operations. 2、Utilize magnetic reed technology for reliable, long-lasting performance. 3、Withstand harsh conditions with an IP67-rated, zinc housing design. 4、Operate flexibly across a wide 12-27V DC/AC voltage range. 5、Simplify installation with a pre-wired 5m cable and LED indicator.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Block design | Symbol | 00991145 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
| Measured variable | Position | Measuring principle | Magnetic reed |
| Ambient temperature | -20°C 70°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar | Switching element function | N/O contact |
| On time | 0.5ms | Max. switching frequency | 500Hz |
| Max. output current | 1000mA | Min. switching capacity AC | 27VA |
| Max. switching capacity DC | 27W | Short-circuit protection | no |
| Overload protection | Not available | Operating voltage range AC | 12V 27V |
| DC operating voltage range | 12V 27V | Reverse polarity protection | no |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
| Cable length | 5m | Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) | Type of mounting | With accessories |
| Mounting position | Any | Product weight | 130g |
| Housing colour | Black | Housing material | Epoxy resin PET-reinforced Steel |
| Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -5°C 70°C |
| Degree of protection | IP67 | LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer ID | 151672 |
Specifications may be subject to change without notice
