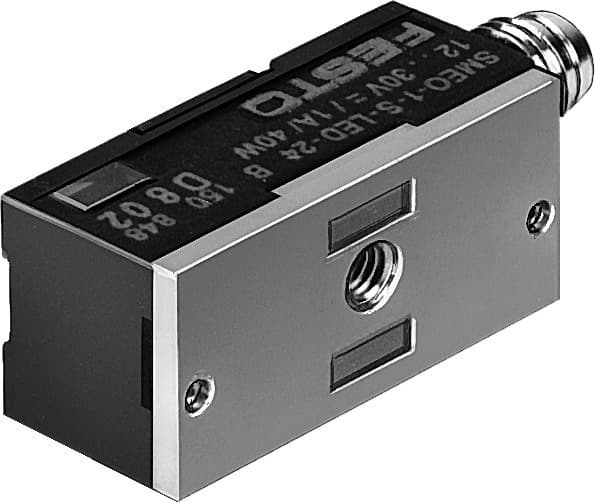

Key Features
- 1Utilize magnetic reed technology for precise and reliable detection. 2、Achieve IP67 protection against dust and water ingress. 3、Integrate a compact 20-gram block design easily. 4、Monitor operation with a clear yellow LED status indicator. 5、Ensure robust performance in demanding industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Block design | Symbol | 00991148 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
| Measured variable | Position | Measuring principle | Magnetic reed |
| Ambient temperature | -20°C 70°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar | Switching element function | N/O contact |
| On time | 0.5ms | Max. output current | 1000mA |
| Min. switching capacity AC | 27VA | Max. switching capacity DC | 27W |
| Short-circuit protection | no | Overload protection | Not available |
| Operating voltage range AC | 12V 27V | DC operating voltage range | 12V 27V |
| Reverse polarity protection | no | Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection for input 1, connection pattern | 00991155 | Connection outlet orientation | Longitudinal |
| Type of mounting | With accessories | Mounting position | Any |
| Product weight | 20g | Housing colour | Black |
| Housing material | Epoxy resin PET Steel Die-cast zinc | Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5°C 70°C | Degree of protection | IP67 |
| LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 150848 |
Specifications may be subject to change without notice
