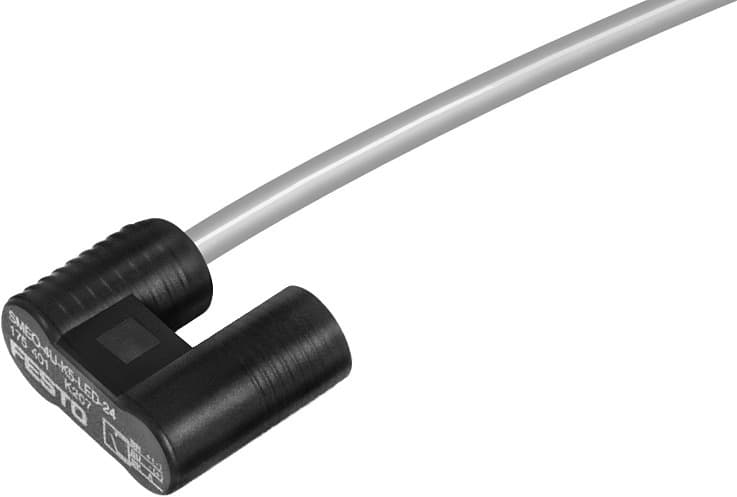

Key Features
- 1Achieve 0.2 mm high repeat accuracy for precise detection. 2、Utilize magnetic reed principle for robust and consistent operation. 3、Withstand harsh conditions with IP67 protection rating. 4、Monitor status easily with a clear yellow LED indicator. 5、Operate reliably from -20°C to 60°C and 12-27V DC.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Round | Symbol | 00991145 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Measuring principle | Magnetic reed |
| Ambient temperature | -20°C 60°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar | Switching element function | N/O contact |
| On time | 0.5ms | Switch-off time | 0.03ms |
| Max. switching frequency | 800Hz | Max. output current | 500mA |
| Max. switching capacity DC | 10W | Inductive protective circuit | Adapted to MZ, MY and ME coils |
| Short-circuit protection | no | DC operating voltage range | 12V 27V |
| Residual ripple | 10 % | Reverse polarity protection | no |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
| Cable length | 2.5m | Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) | Type of mounting | With accessories |
| Mounting position | Any | Product weight | 70g |
| Housing material | PET | Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5°C 60°C | Degree of protection | IP67 |
| LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 36198 |
Specifications may be subject to change without notice
