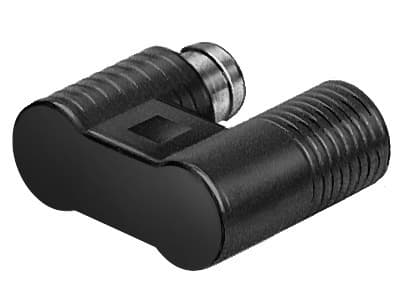

Key Features
- 1Ensure high accuracy and durability for demanding industrial applications. 2、Utilize a magnetic reed contact for reliable, long-life switching performance. 3、Monitor status easily with a clear yellow LED indication. 4、Withstand harsh conditions thanks to IP67 dust and water protection. 5、Connect flexibly using the standard 3-pin M8 male connector.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Round | Symbol | 00991148 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Measuring principle | Magnetic reed |
| Ambient temperature | -20°C 60°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar | Switching element function | N/O contact |
| On time | 0.5ms | Switch-off time | 0.03ms |
| Max. switching frequency | 800Hz | Max. output current | 500mA |
| Max. switching capacity DC | 10W | Inductive protective circuit | Adapted to MZ, MY and ME coils |
| Short-circuit protection | no | DC operating voltage range | 12V 27V |
| Residual ripple | 10 % | Reverse polarity protection | no |
| Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 3 | Electrical connection for input 1, connection pattern | 00991155 |
| Type of mounting | With accessories | Mounting position | Any |
| Product weight | 6g | Housing material | PET |
| Switching status indication | LED yellow | Degree of protection | IP67 |
| LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 151526 |
Specifications may be subject to change without notice
