Key Features

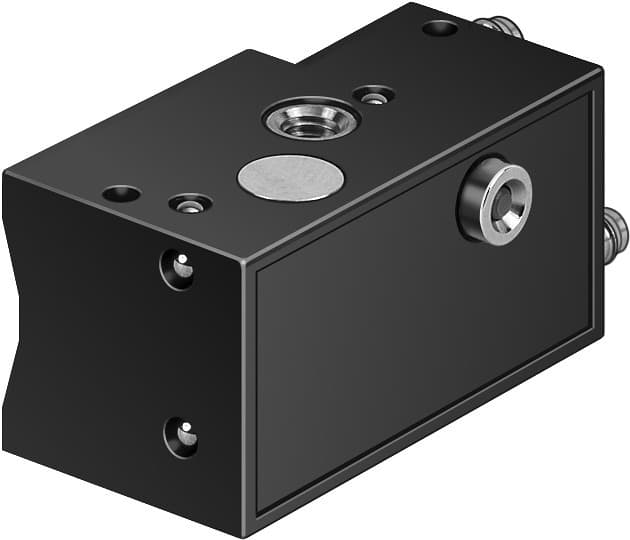

- 1Integrate easily with a compact block design for versatile automation systems. 2、Operate reliably in temperatures from -15°C to +60°C for diverse settings. 3、Ensure safety in explosive zones 1 and 2 with ATEX protection certification. 4、Monitor status clearly with an optical indicator and IP65 dust/water protection. 5、Reduce system weight with a durable 14-gram brass, PA, and POM housing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Block design | Symbol | 00991600 |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Measuring principle | Magnetic |
| Operating pressure | 2bar 6bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Ambient temperature | -15°C 60°C |
| Reproducibility of switching value | +/- 0.2 mm | On time | 30ms |
| Switch-off time | 25ms | Type of mounting | With through-hole With accessories |
| Valve function | 3/2 | Pneumatic connection | Barbed fitting PK-3 |
| Product weight | 14g | Housing material | Brass PA POM |
| Switching status indication | Optical | Degree of protection | IP65 |
| LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 31008 |
Specifications may be subject to change without notice
