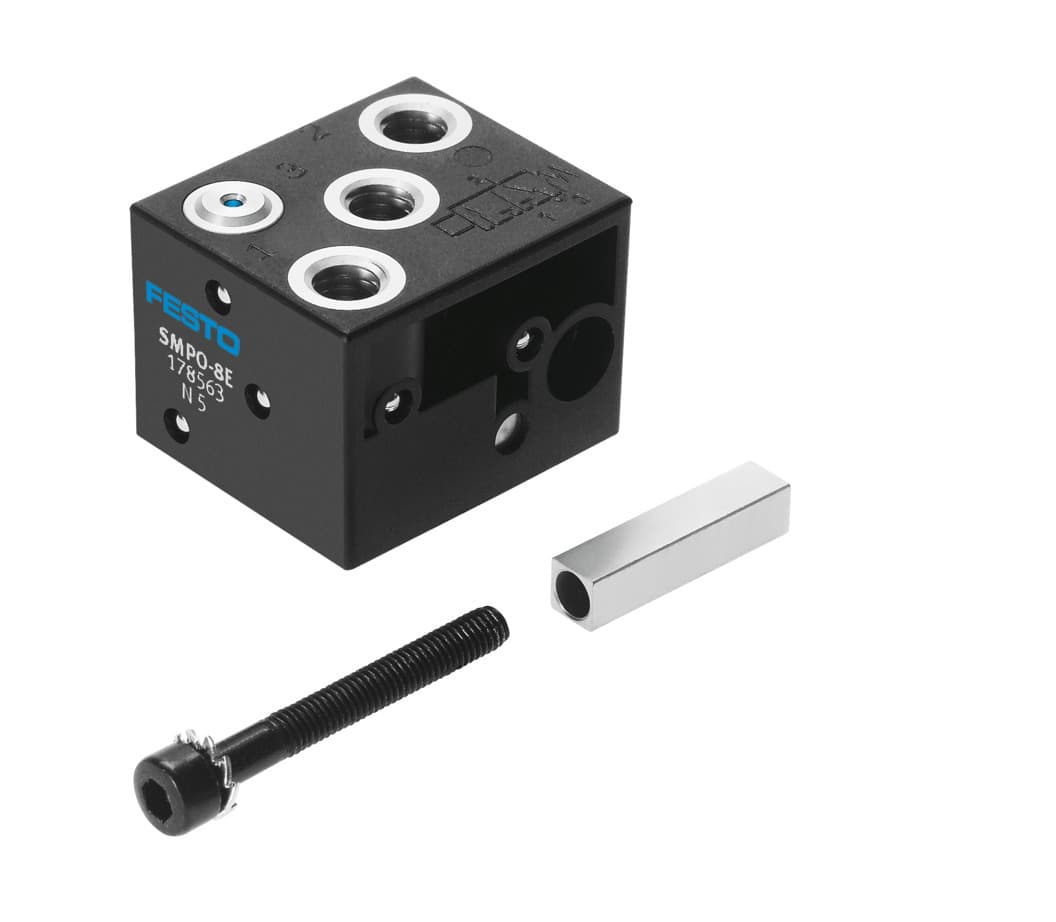

smpo-8e
Product ID:5647
Updated: 2026/7/4
Key Features
- 1Ensure seamless T-slot integration with all compatible Festo cylinders.
- 2Operate reliably from -15°C to +60°C and 2 to 8 bar pressure.
- 3Utilize magnetic measuring for accurate and reliable position sensing.
- 4Benefit from IP65 protection against dust and water ingress.
- 5Meet ISO 8573-1:2010 and RoHS environmental standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Symbol | 00991600 |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Note on materials | RoHS-compliant |
| Measuring principle | Magnetic | Operating pressure | 2bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Ambient temperature | -15°C 60°C | Reproducibility of switching value | +/- 0.2 mm |
| On time | 22ms | Switch-off time | 52ms |
| Type of mounting | With through-hole With accessories Can be inserted in slot from above | Valve function | 3/2 |
| Pneumatic connection | M5 | Product weight | 11g |
| Housing material | Aluminum PA Anodized High-alloy stainless steel | Switching status indication | Optical |
| Degree of protection | IP65 | LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer ID | 178563 |
Specifications may be subject to change without notice
