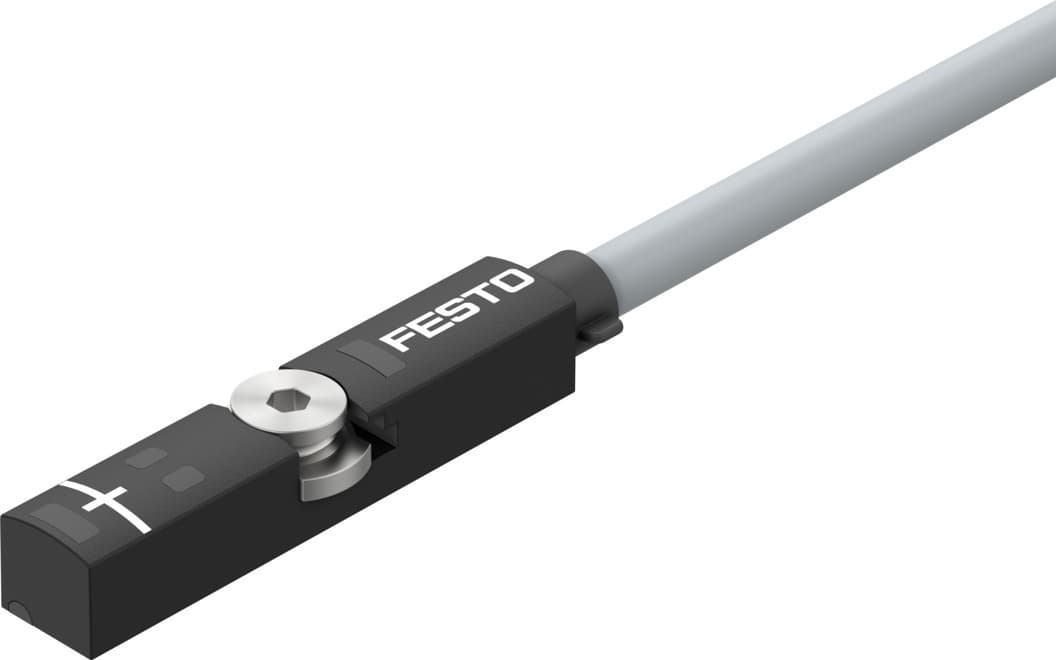

smt-8m-a-zs-24v-e-5,0-oe
Product ID:387
Updated: 2026/4/3
Key Features
- 1Achieve high 0.2mm repeat accuracy for precise positioning. 2、Utilize a magnetoresistive, non-contacting oil-resistant design. 3、Operate reliably from -40°C to +70°C in harsh environments. 4、Meet global standards with RCM, cULus, and CE compliance marks. 5、Enable fast control with <1ms response and 180Hz switching frequency.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Based on norm | EN 60947-5-2 |
| Symbol | 00991623 | Certification | RCM compliance mark c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Certificate issuing authority | UL E232949 | Special features | Oil-resistant |
| Note on materials | RoHS-compliant Halogen-free | Application note | https://www.festo.com/Drive-Sensor-Overview |
| Measured variable | Position | Measuring principle | Magneto-resistive |
| Ambient temperature | -40°C 85°C | Repetition accuracy | 0.2mm |
| Switching output | Non-contact, 2-wire | Switching element function | N/O contact |
| On time | 1ms | Switch-off time | 1ms |
| Max. switching frequency | 180Hz | Max. output current | 80mA |
| Max. output current in mounting kits | 80mA | Max. switching capacity DC | 1.9W |
| Max. switching capacity DC in mounting kits | 1.5W | Voltage drop | 6V |
| Short-circuit protection | yes | Overload protection | Available |
| Rated operating voltage DC | 24V | DC operating voltage range | 7V 30V |
| Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 2 |
| Connection outlet orientation | Longitudinal | Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm |
| Cable length | 5m | Cable characteristic | Suitable for energy chains/robot applications |
| Color cable sheath | Gray | Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Screwed tightly Can be inserted in slot from above | Max. tightening torque | 0.6Nm |
| Mounting position | Any | Product weight | 57.1g |
| Housing colour | Black | Housing material | PA-reinforced High-alloy stainless steel |
| Switching status indication | LED yellow | Function reserve indication | LED orange |
| Ambient temperature with flexible cable installation | -20°C 85°C | Degree of protection | IP65 IP68 IP69K |
| LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 8165237 |
Specifications may be subject to change without notice
