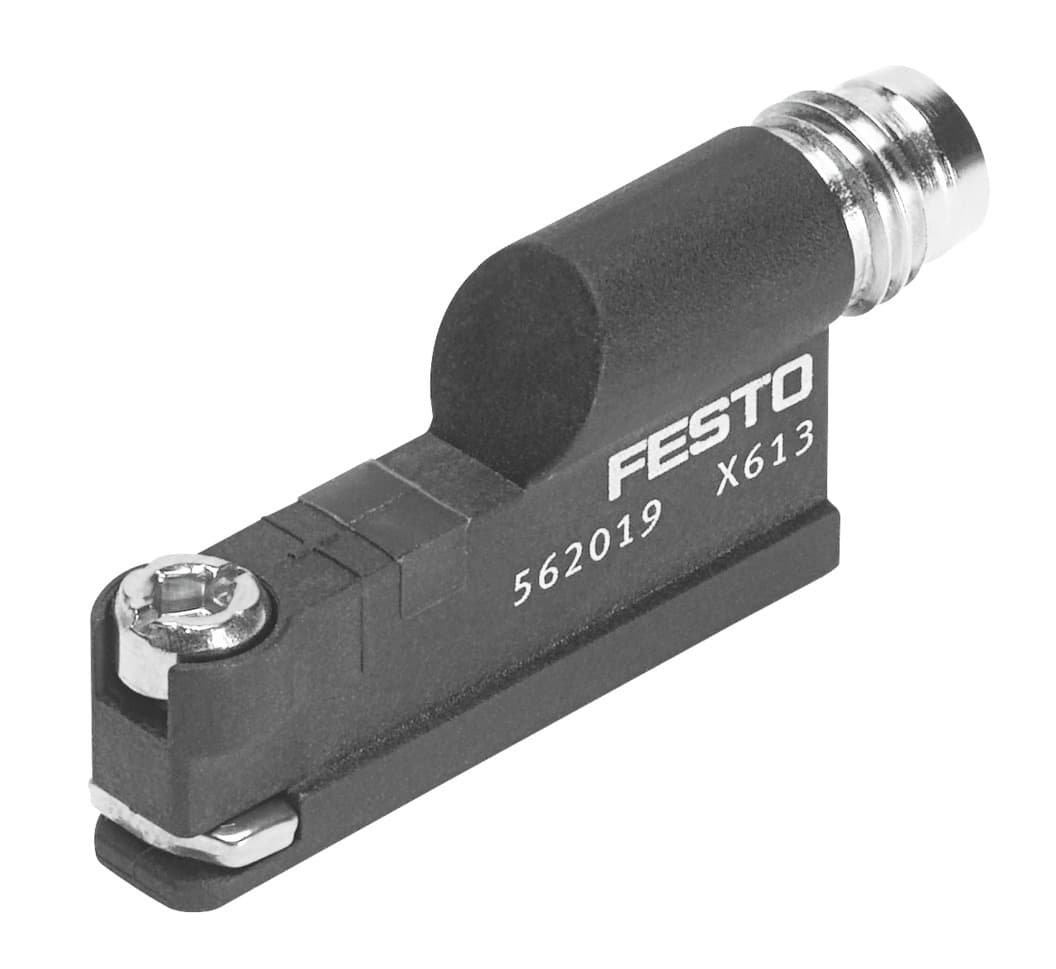

smt-8-sl-ps-led-24-b
Product ID:13046
Updated: 2026/7/4
Key Features
- 1Achieve high 0.2 mm repetition accuracy for precise positioning.
- 2Ensure robust operation with IP65 and IP68 protection ratings.
- 3Simplify installation via screw-clamped mounting in T-slots.
- 4Connect easily using the standard M8x1 A-coded 3-pin plug.
- 5Meet compliance with CE, EMC, RoHS, and UL certifications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Based on norm | EN 60947-5-2 |
| Symbol | 00991153 | Certification | RCM compliance mark c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Certificate issuing authority | UL E232949 | Note on materials | RoHS-compliant |
| Application note | Support / actuator-sensor overview "The right sensor for the actuator" | Measured variable | Position |
| Measuring principle | Magneto-resistive | Ambient temperature | -20°C 70°C |
| Repetition accuracy | 0.2mm | Switching output | PNP |
| Switching element function | N/O contact | On time | 1ms |
| Switch-off time | 2ms 6ms | Max. switching frequency | 140Hz |
| Max. output current | 100mA | Max. switching capacity DC | 3W |
| Voltage drop | 2V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
| Minimum load current | 0.1mA | Residual current | 0.002mA |
| Short-circuit protection | yes | Overload protection | Available |
| Rated operating voltage DC | 24V | DC operating voltage range | 10V 30V |
| Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 3 | Electrical connection for input 1, connection pattern | 00991155 |
| Connection outlet orientation | Longitudinal | Material of pin contacts | Brass, gold-plated |
| Type of mounting | Screwed tightly Can be inserted in slot lengthwise | Tightening torque | 0.12Nm 0.4Nm |
| Max. tightening torque | 0.4Nm | Mounting position | Any |
| Product weight | 4.2g | Housing colour | Black |
| Housing material | PA | Switching status indication | LED yellow |
| Degree of protection | IP65 IP68 | LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer ID | 562019 |
Specifications may be subject to change without notice
