Key Features
- 1Ensure high-accuracy detection with magneto-inductive technology.
- 2Withstand harsh conditions thanks to IP67 protection.
- 3Operate reliably across a wide -25°C to +70°C temperature range.
- 4Monitor status easily via the integrated LED indicator.
- 5Integrate seamlessly with its compact block design and accessories.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Block design | Based on norm | EN 60947-5-2 |
| Symbol | 00991152 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Measured variable | Position |
| Measuring principle | Magneto-inductive | Ambient temperature | -25°C 70°C |
| Repetition accuracy | 0.2mm | Switching output | PNP |
| Switching element function | N/O contact | Hysteresis | 0.1mm 1.5mm |
| On time | 1ms | Switch-off time | 1ms |
| Max. switching frequency | 1000Hz | Max. output current | 200mA |
| Max. switching capacity DC | 6W | Voltage drop | 3V |
| Inductive protective circuit | Adapted to MZ, MY and ME coils | Residual current | 0.01mA |
| Short-circuit protection | Pulsed | Overload protection | Available |
| DC operating voltage range | 10V 30V | Residual ripple | 10 % |
| Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 3 |
| Connection outlet orientation | Longitudinal | Cable length | 2.5m |
| Cable characteristic | Standard | Color cable sheath | Gray |
| Material of cable sheath | PVC | Insulating sheath material | PVC |
| Wire ends | Cable end sleeve | Type of mounting | With accessories |
| Mounting position | Any | Product weight | 85g |
| Housing colour | Black | Housing material | PET Die-cast zinc |
| Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -5°C 70°C |
| Degree of protection | IP67 | LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer ID | 151683 |
Specifications may be subject to change without notice

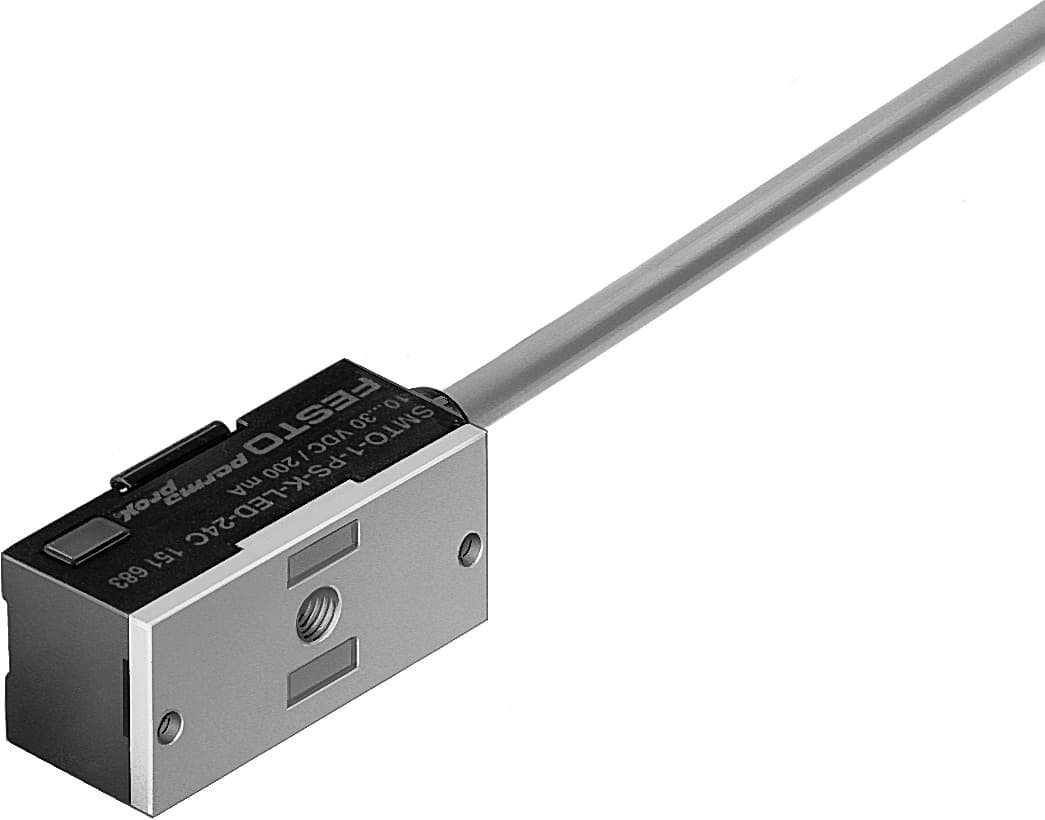

Still deciding on smto-1-ps-k-led-24-c?
