Key Features
- 1Achieve 0.2 mm repeat accuracy for reliable detection.
- 2Withstand harsh conditions with an IP67 protection rating.
- 3Monitor status easily via the integrated yellow LED.
- 4Operate reliably from -25 °C to 70 °C ambient.
- 5Ensure compliance with EU EMC and RoHS directives.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Round | Based on norm | EN 60947-5-2 |
| Symbol | 00991150 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Measured variable | Position |
| Measuring principle | Magneto-inductive | Ambient temperature | -25°C 70°C |
| Repetition accuracy | 0.2mm | Switching output | NPN |
| Switching element function | N/O contact | On time | 0.5ms |
| Switch-off time | 0.5ms | Max. output current | 200mA |
| Max. switching capacity DC | 6W | Voltage drop | 2V |
| Inductive protective circuit | Installed | Minimum load current | 0.1mA |
| Residual current | 0.01mA | Short-circuit protection | Pulsed |
| Overload protection | Available | DC operating voltage range | 10V 30V |
| Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00991155 | Connection outlet orientation | Longitudinal |
| Material of pin contacts | Brass, gold-plated | Type of mounting | With accessories |
| Max. tightening torque | 0.8Nm | Mounting position | Any |
| Product weight | 6g | Housing colour | Black |
| Housing material | PA PET PUR | Switching status indication | LED yellow |
| Degree of protection | IP67 | LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer ID | 152743 |
Specifications may be subject to change without notice

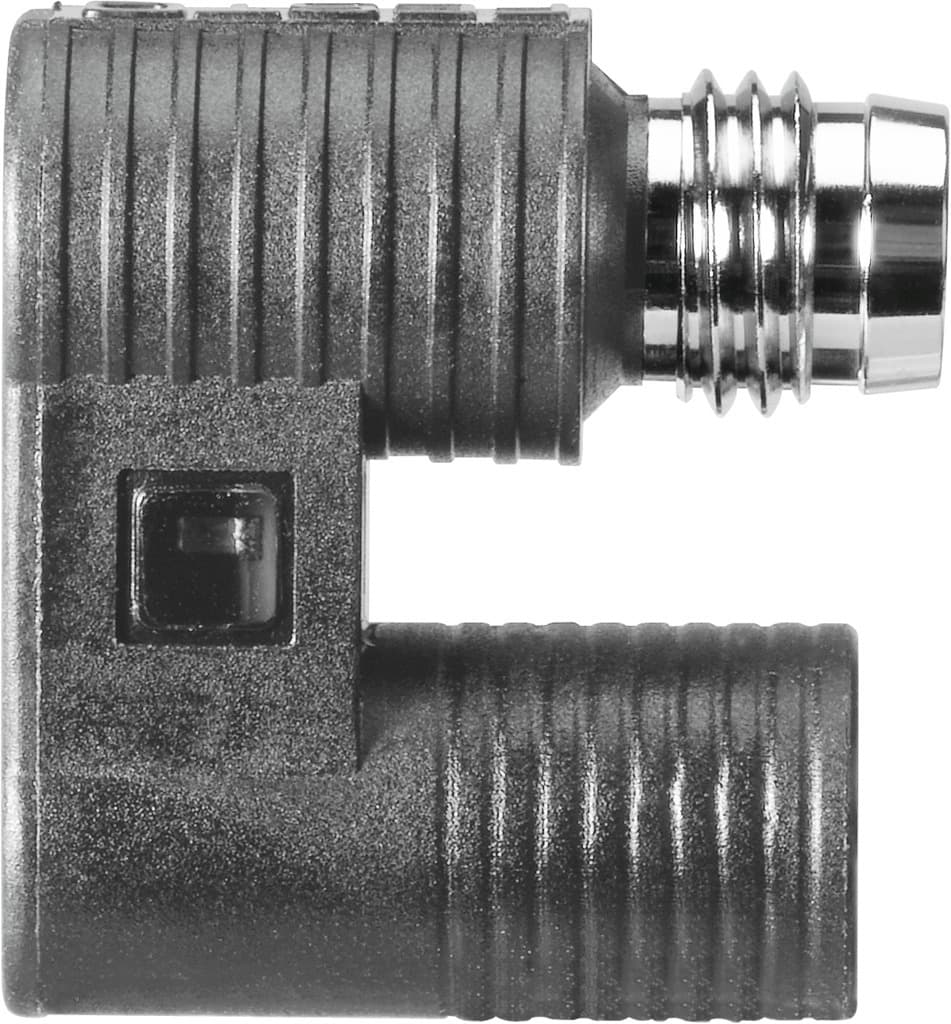

Still deciding on smto-4u-ns-s-led-24?
