Key Features
- 1Ensure precise detection with <5 ms fast switching for high-speed applications.
- 2Utilize magneto-inductive principle for robust, non-contact object sensing.
- 3Withstand harsh conditions via an IP67 protection rating against dust and water.
- 4Meet global safety standards with compliance to EU EMC and RCM directives.
- 5Simplify integration and operation with clear LED status indicators.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Round | Based on norm | EN 60947-5-2 |
| Symbol | 00991152 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Measured variable | Position |
| Measuring principle | Magneto-inductive | Ambient temperature | -25°C 70°C |
| Repetition accuracy | 0.2mm | Switching output | PNP |
| Switching element function | N/O contact | On time | 5ms |
| Switch-off time | 5ms | Max. output current | 200mA |
| Max. switching capacity DC | 6W | Voltage drop | 2V |
| Inductive protective circuit | Installed | Minimum load current | 0.1mA |
| Residual current | 0.01mA | Short-circuit protection | Pulsed |
| Overload protection | Available | DC operating voltage range | 10V 30V |
| Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
| Cable length | 2.5m | Cable characteristic | Standard |
| Color cable sheath | Gray | Material of cable sheath | PVC |
| Insulating sheath material | PVC | Wire ends | Tin-plated |
| Type of mounting | With accessories | Max. tightening torque | 0.8Nm |
| Mounting position | Any | Product weight | 70g |
| Housing colour | Black | Housing material | PET |
| Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -5°C 70°C |
| Degree of protection | IP67 | LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer ID | 152836 |
Specifications may be subject to change without notice

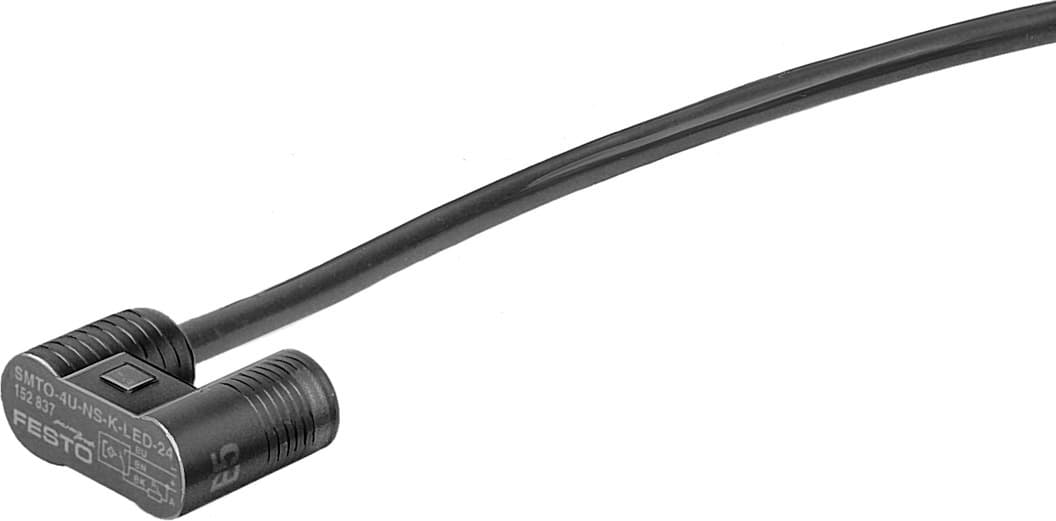

Still deciding on smto-4u-ps-k-led-24?
