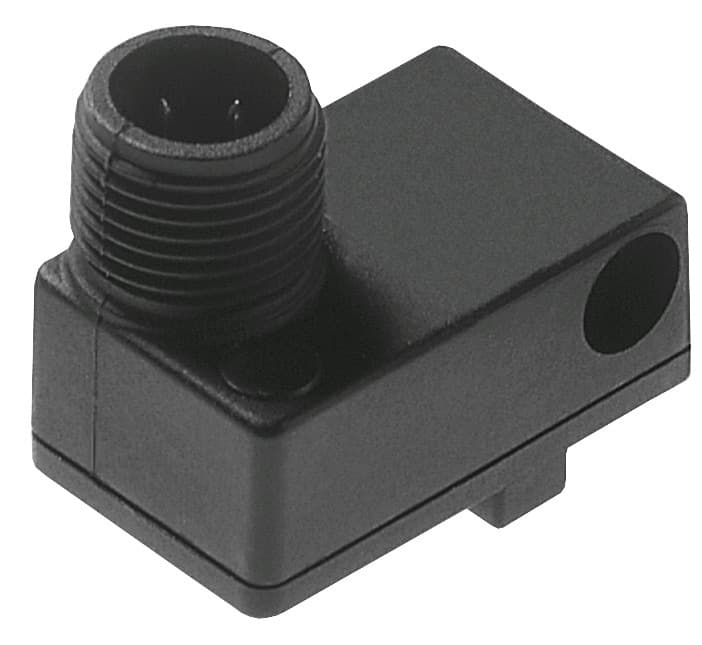

smto-8e-ns-m12-led-24
Product ID:5130
Updated: 2026/7/4
Key Features
- 1Achieve high accuracy and reliability for precise T-slot measurements.
- 2Utilize magnetoresistive technology for reliable detection in tough environments.
- 3Withstand harsh conditions with IP65 and IP67 protection ratings.
- 4Integrate easily using the standard NPN switching output.
- 5Save space with the compact and versatile sensor design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Based on norm | EN 60947-5-2 |
| Symbol | 00991150 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position | Measuring principle | Magneto-resistive |
| Ambient temperature | -20°C 60°C | Repetition accuracy | 0.2mm |
| Switching output | NPN | Switching element function | N/O contact |
| On time | 1.3ms | Switch-off time | 7.3ms |
| Max. switching frequency | 130Hz | Max. output current | 100mA |
| Max. switching capacity DC | 2.8W | Voltage drop | 1.8V |
| Inductive protective circuit | Adapted to MZ, MY and ME coils | Residual current | 0.15mA |
| Short-circuit protection | Pulsed | Overload protection | Available |
| DC operating voltage range | 10V 30V | Residual ripple | 10 % |
| Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection for input 1, connection pattern | 00995573 | Connection outlet orientation | Transverse |
| Material of pin contacts | Brass, gold-plated | Max. tightening torque plug | 0.5Nm |
| Type of mounting | Clamped in T slot With accessories Can be inserted in slot from above | Tightening torque | 0.5Nm |
| Mounting position | Any | Product weight | 12g |
| Housing colour | Black | Housing material | Wrought aluminum alloy TPE-U(PU) High-alloy stainless steel |
| Switching status indication | LED yellow | Degree of protection | IP65 IP67 |
| LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 171176 |
Specifications may be subject to change without notice
