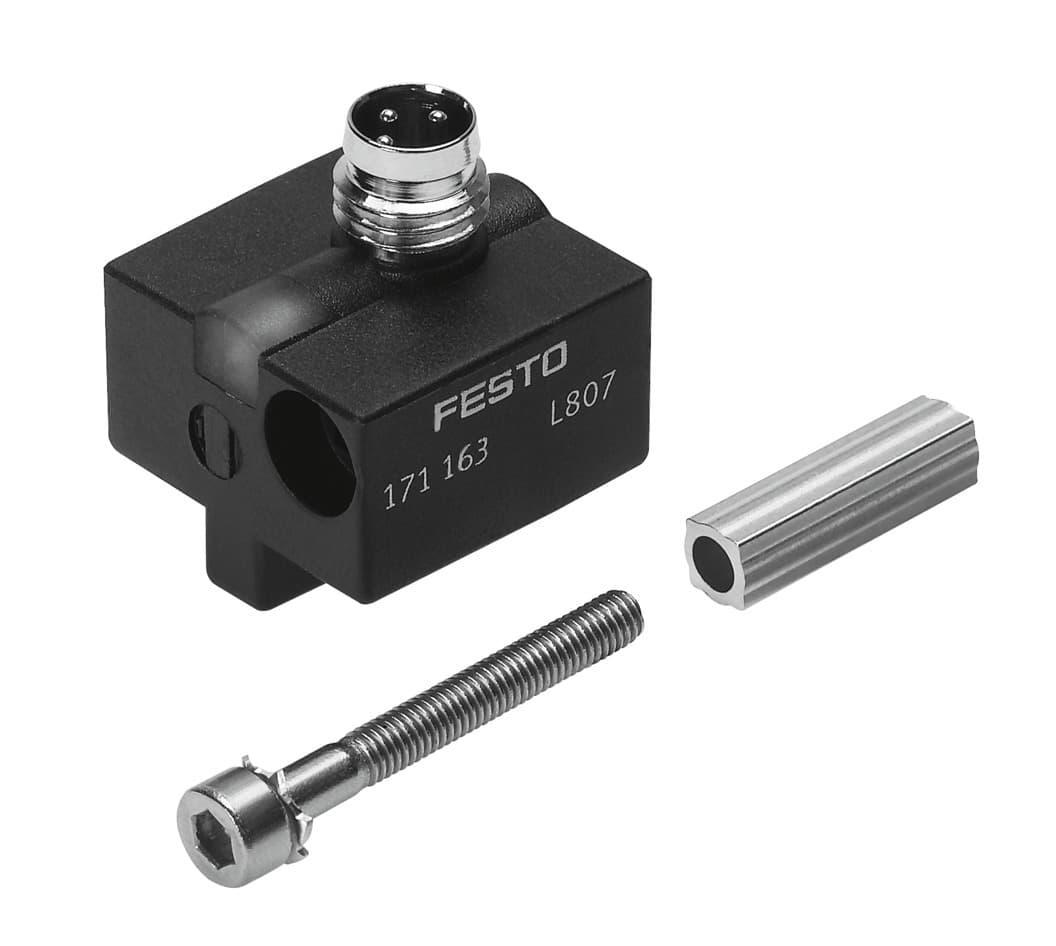

smto-8e-ns-s-led-24
Product ID:5128
Updated: 2026/4/3
Key Features
- 1Achieve 0.2 mm repeat accuracy for reliable performance. 2、Utilize magnetoresistive tech for precise position detection. 3、Benefit from fast NPN output with <1.3 ms switching. 4、Meet EU EMC and RoHS directives for compliance. 5、Integrate easily with compact design and M8 plug.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Based on norm | EN 60947-5-2 |
| Symbol | 00991150 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position | Measuring principle | Magneto-resistive |
| Ambient temperature | -20°C 60°C | Repetition accuracy | 0.2mm |
| Switching output | NPN | Switching element function | N/O contact |
| On time | 1.3ms | Switch-off time | 7.3ms |
| Max. switching frequency | 130Hz | Max. output current | 100mA |
| Max. switching capacity DC | 2.8W | Voltage drop | 1.8V |
| Inductive protective circuit | Adapted to MZ, MY and ME coils | Residual current | 0.15mA |
| Short-circuit protection | Pulsed | Overload protection | Available |
| DC operating voltage range | 10V 30V | Residual ripple | 10 % |
| Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection for input 1, connection pattern | 00991155 | Connection outlet orientation | Transverse |
| Material of pin contacts | Brass, gold-plated | Max. tightening torque plug | 0.3Nm |
| Type of mounting | Clamped in T slot With accessories Can be inserted in slot from above | Tightening torque | 1Nm |
| Mounting position | Any | Product weight | 12g |
| Housing colour | Black | Housing material | Brass, nickel-plated TPE-U(PU) |
| Switching status indication | LED yellow | Degree of protection | IP65 IP67 |
| LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 171166 |
Specifications may be subject to change without notice
