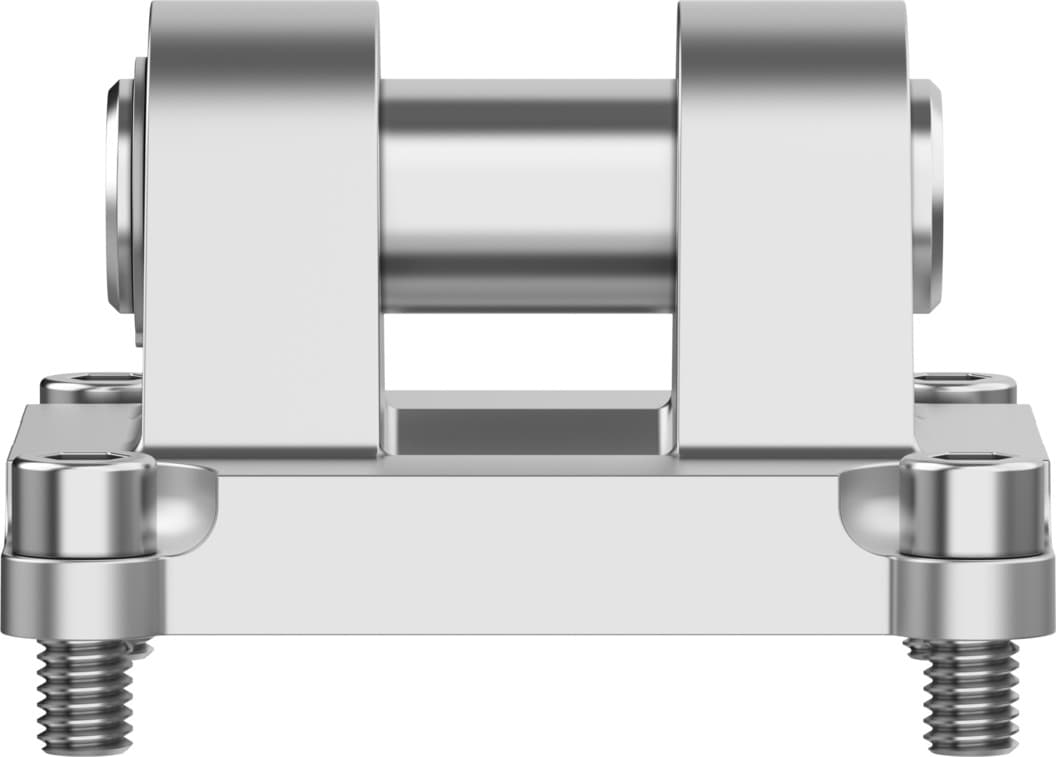

snc-125
Product ID:5334
Updated: 2026/4/4
Key Features
- 1Meet ISO 15552 standards for broad pneumatic system compatibility. 2、Construct with durable die-cast aluminum, steel bolts, and galvanized screws. 3、Operate reliably in a wide -40°C to 150°C ambient temperature range. 4、Enhance corrosion resistance with copper-free and PTFE-free materials. 5、Adhere to LABS (PWIS) compliance per VDMA24364-B2-L for quality.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 125 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 150°C | Product weight | 1732g |
| Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
| Bolt material | Steel Galvanized | Material of screws | Steel Galvanized |
| Fuse material | Spring steel Galvanized | Manufacturer ID | 174389 |
Specifications may be subject to change without notice
